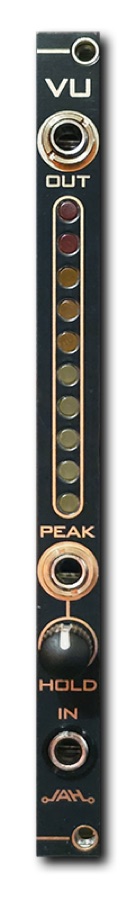

VU

Maker	Avalon Harmonics
Type	Mono VU meter with an envelope follower output
Mounting	SMD
Width	2 HP
License	Open source (CC BY-SA 4.0 on the design files)
Difficulty	🔥 SMD (0805)

Doubles as a modulation source because the meter reading is also available as CV. A deeper through hole version exists in the same folder.
