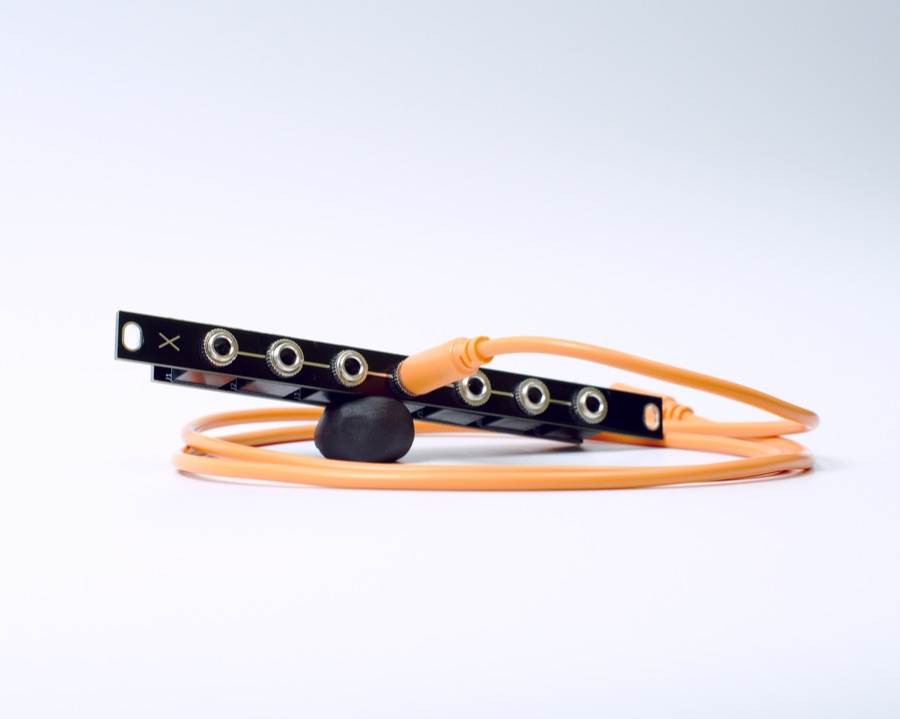

MiniMult

Maker	Benjiao Modular
Type	Passive multiple in 2HP
Mounting	Through-hole
Width	2 HP
License	Open source (MIT over a hardware-only repo)
Difficulty	🧊 Low-count through-hole

Seven jacks. v1.0 wires them all together, v1.1 splits them into a group of three and a group of four.

Documentation

• Assembly instructions
• Schematic
• Fabrication files (PCBA-ready)

Links

• Source / files on GitHub
• Maker page
