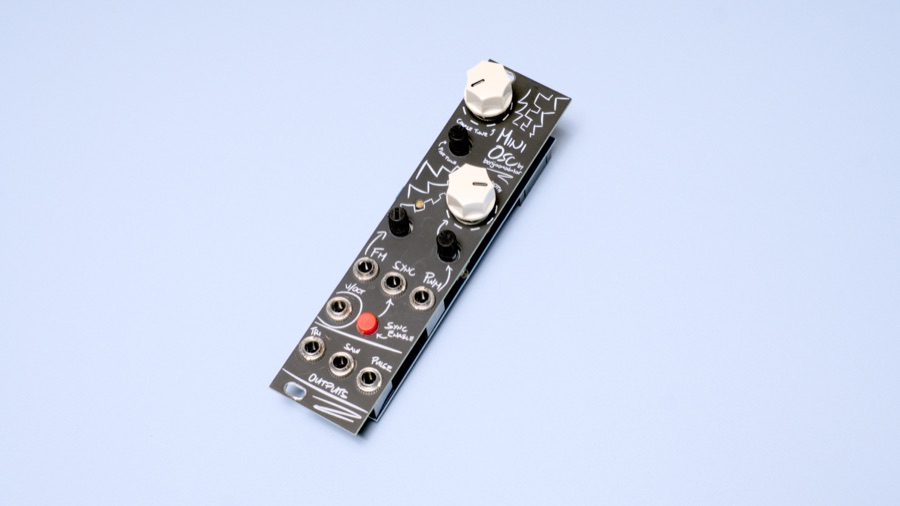

MiniOSC

Maker	Benjiao Modular
Type	Schmitt trigger sawtooth and pulse oscillator with volt per octave
Mounting	Mixed
Width	—
License	Open source (CC BY SA 4.0 on the design files)
Difficulty	🔥 SMD (0805)

Build v2.1. Boards for that version can also be ordered directly from PCBWay, who sponsored the project.
