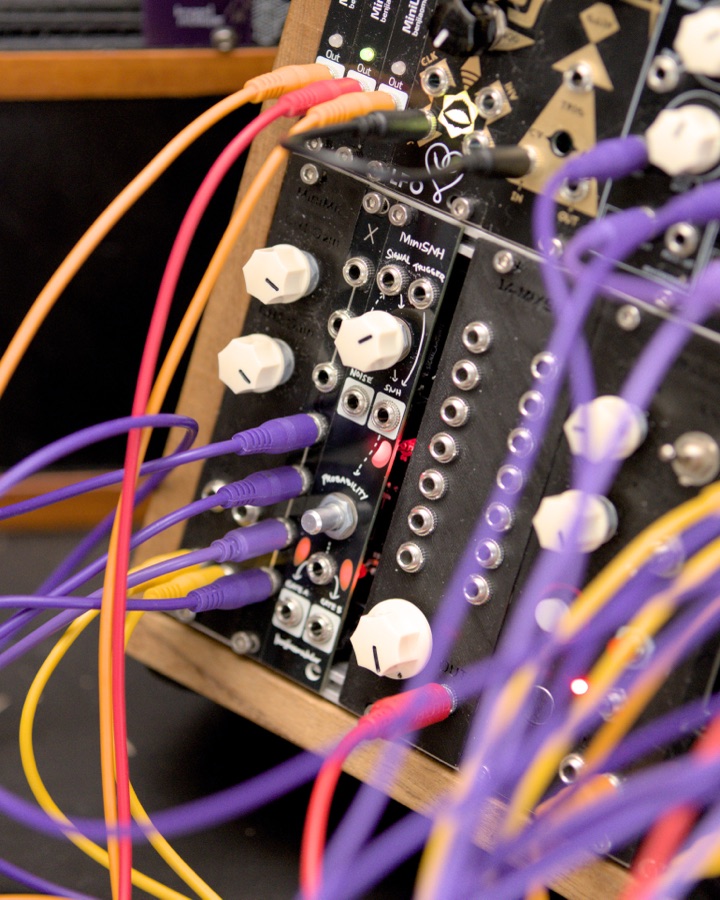

MiniSNH

Maker	Benjiao Modular
Type	Analog sample and hold with random gate and trigger outputs
Mounting	Mixed
Width	—
License	Open source (MIT over a hardware-only repo)
Difficulty	🔥 SMD (0805)

Build v1.1. The v1.0 boards are marked broken in the repo. A bias knob skews which side the random gates fire on.

Documentation

• Assembly instructions
• Schematic
• Fabrication files (PCBA-ready)

Links

• Source / files on GitHub
• Maker page

More from Benjiao Modular

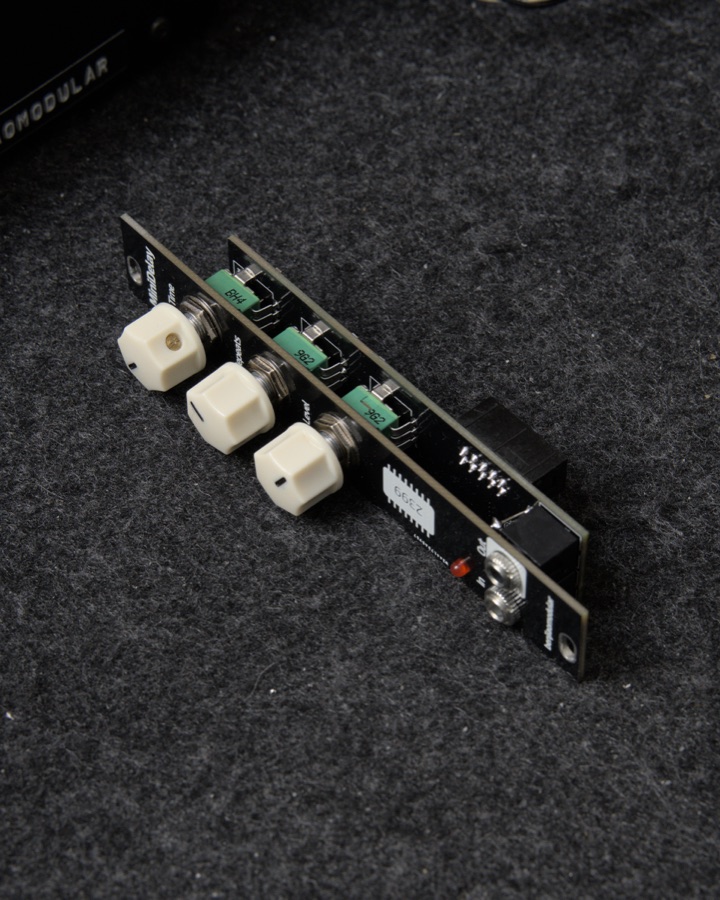

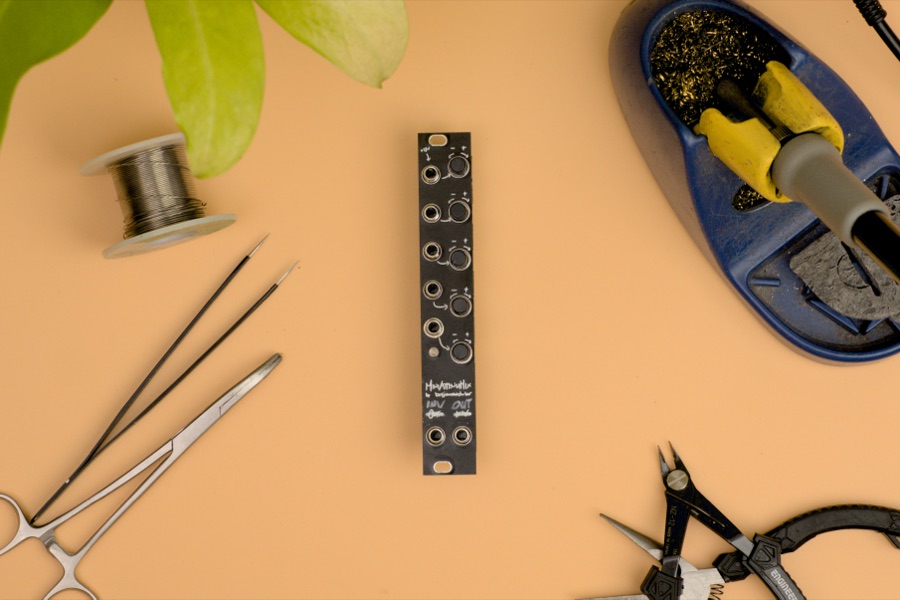

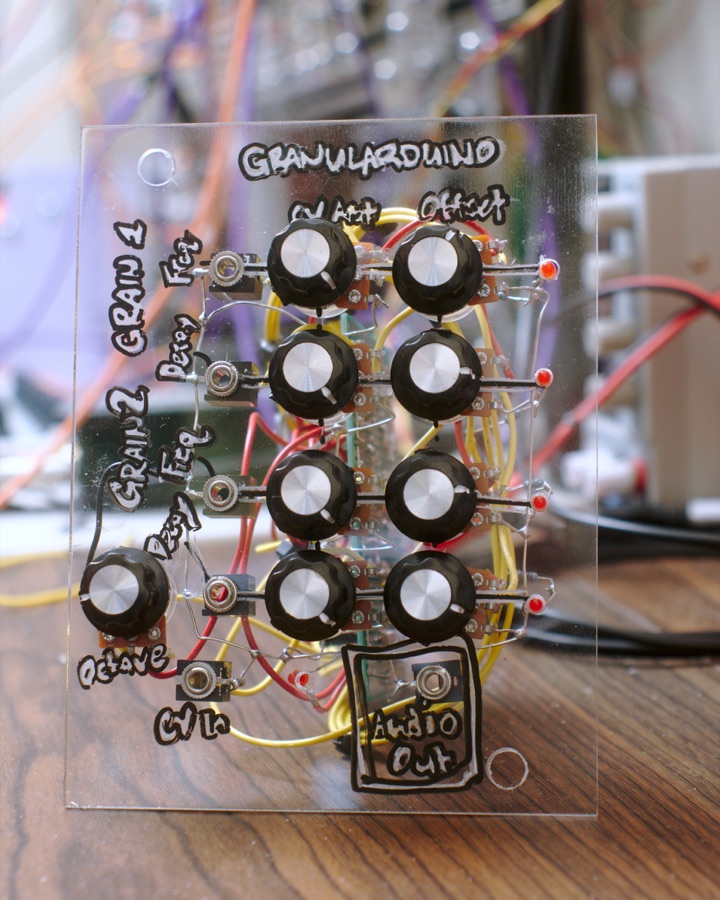

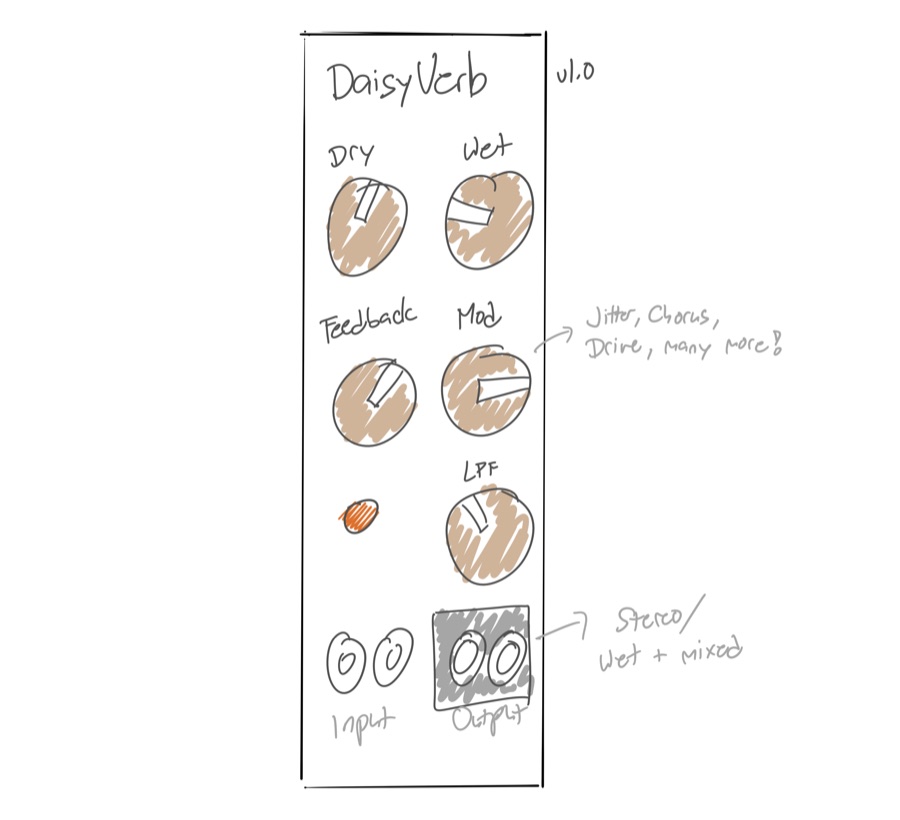

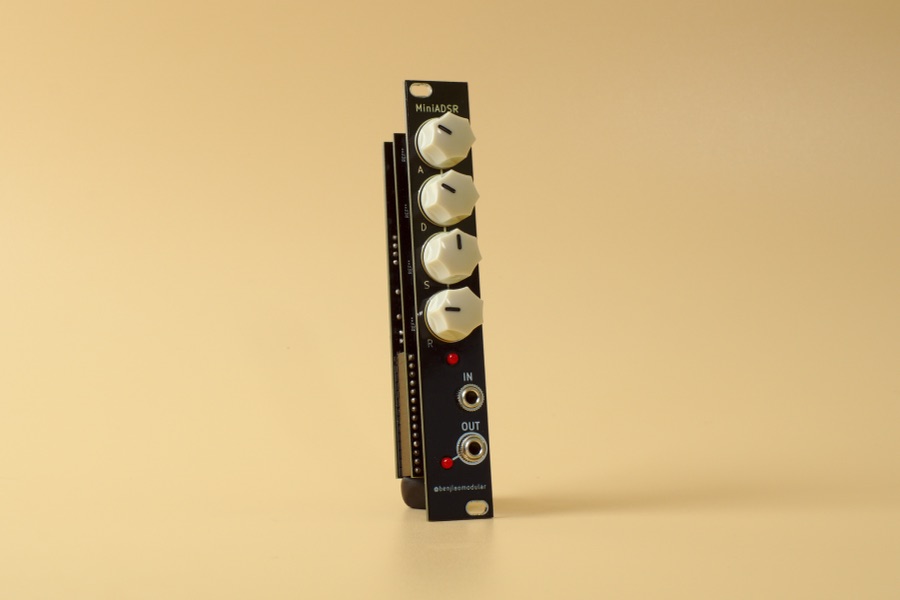

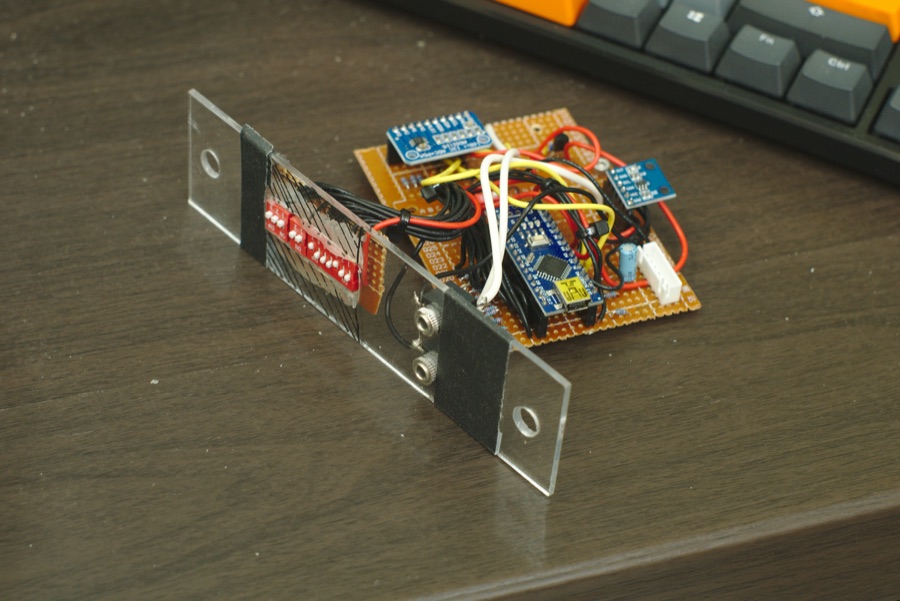

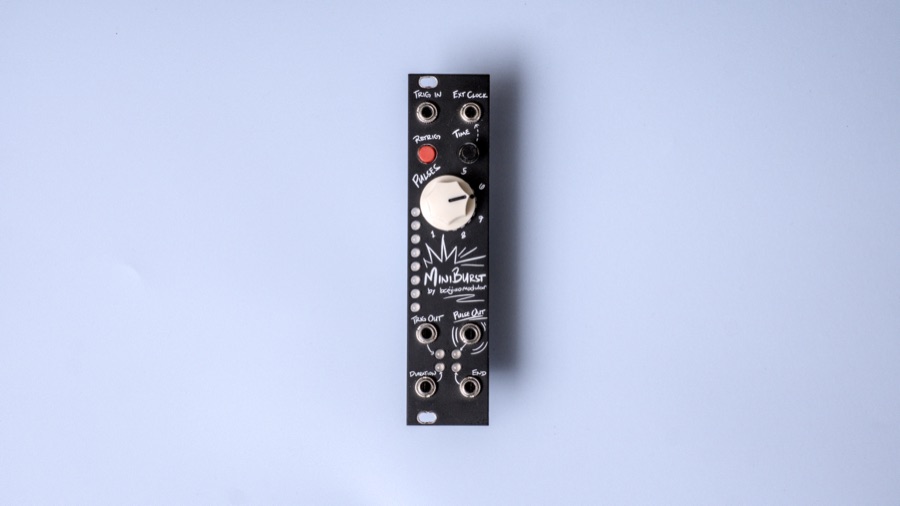

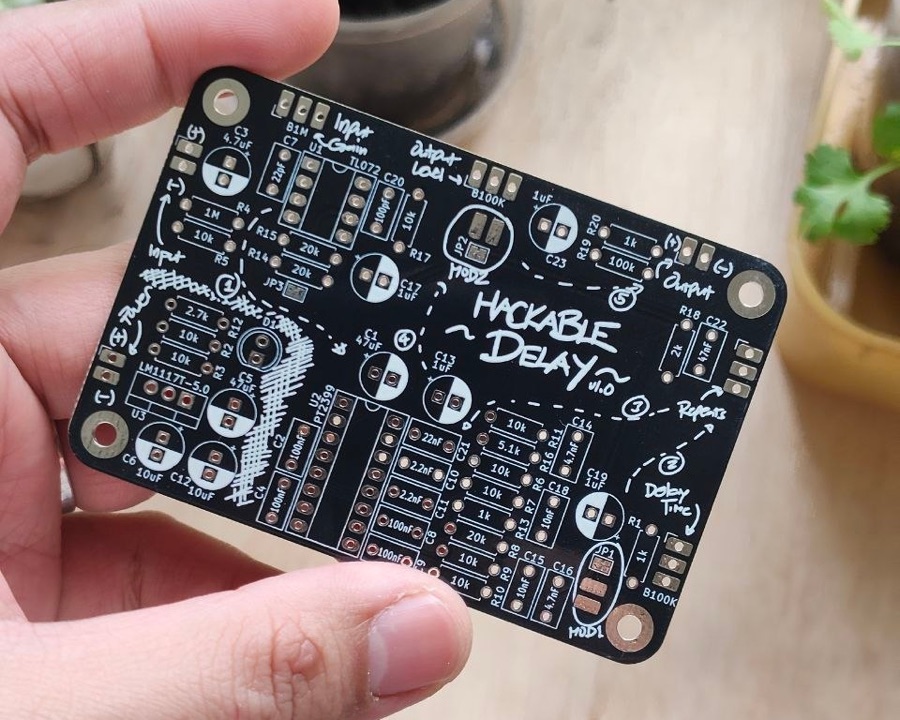

DaisyVerb Reverb module built around the Daisy Seed GranulArduino Granular synthesizer voice on an Arduino Hackable Delay PT2399 delay laid out for circuit bending and modification Kwantizer Arduino CV quantizer with DIP switch note selection MiniADSR Four parameter envelope generator in 4HP MiniAttenuMix DC coupled CV mixer with attenuverted inputs MiniBurst Analog burst generator MiniDelay Three knob PT2399 delay
