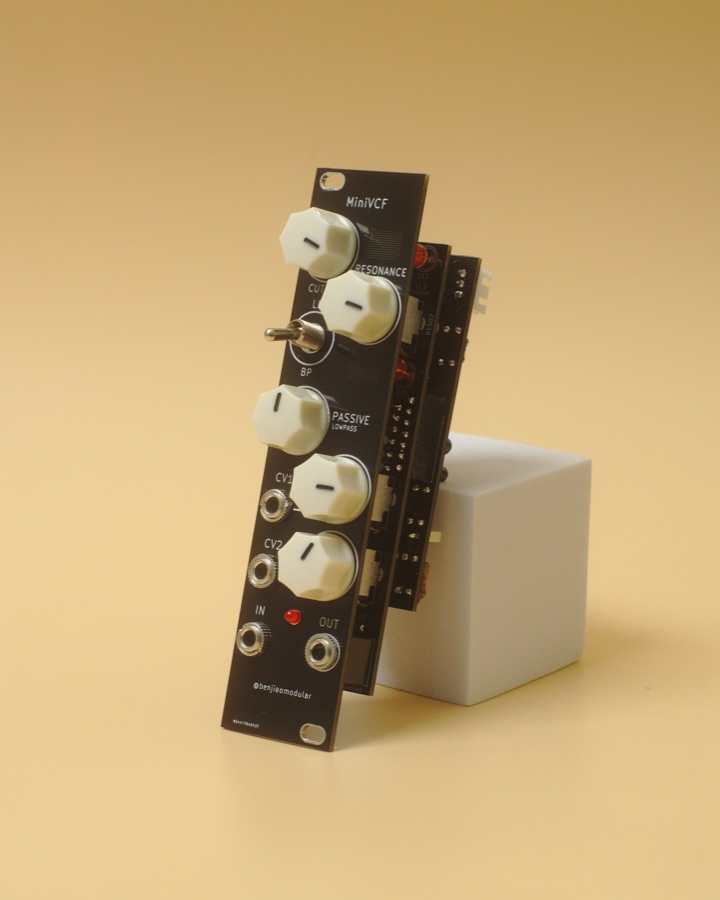

MiniVCF

Maker	Benjiao Modular
Type	Diode ladder low pass filter in 4HP
Mounting	Through-hole
Width	4 HP
License	Proprietary (No licence published on this repo)
Difficulty	🌡️ Medium through-hole

Clone of Built from Moritz Klein's diode ladder tutorial series. v1.1 fixes the reversed cutoff and post-LPF knobs and the tight toggle switch hole from v1.0, but is listed as unverified.

Documentation

• Assembly instructions
• Bill of materials (BOM)
• Schematic
• Fabrication files (PCBA-ready)

Links

• Source / files on GitHub
• Maker page
