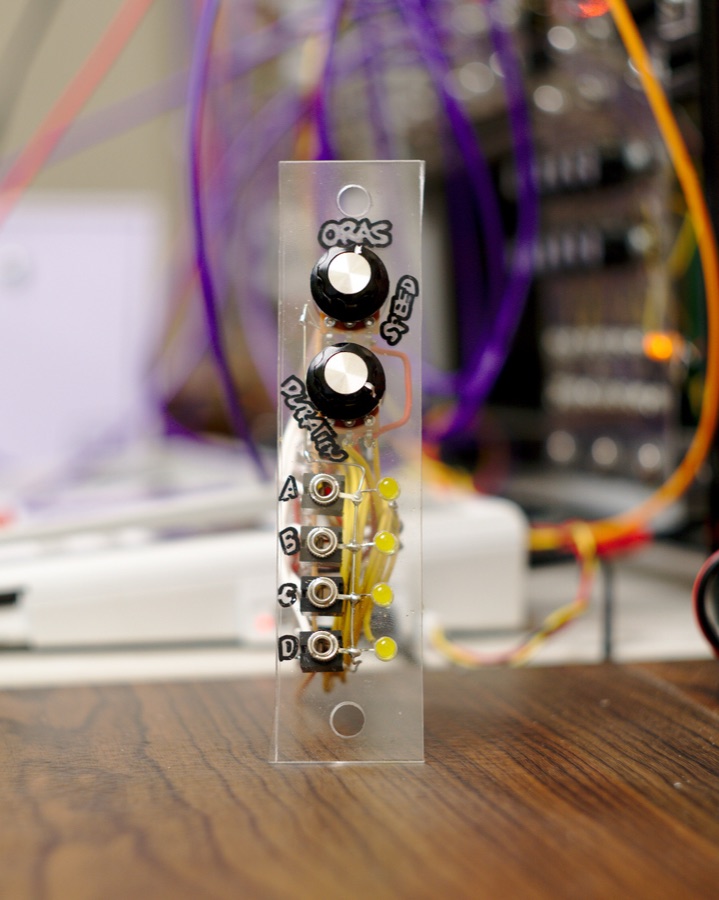

Oras

Maker	Benjiao Modular
Type	Pattern based programmable clock on an Arduino Nano
Mounting	Through-hole
Width	—
License	Proprietary (LICENSE file is empty, so no licence is granted)
Difficulty	🌡️ Medium through-hole

The LICENSE.md file in the repo is empty. A companion repo, OrasPatternGenerator, has a Jupyter notebook for making patterns.

Documentation

• Assembly instructions
• Schematic

Links

• Source / files on GitHub
• Maker page
