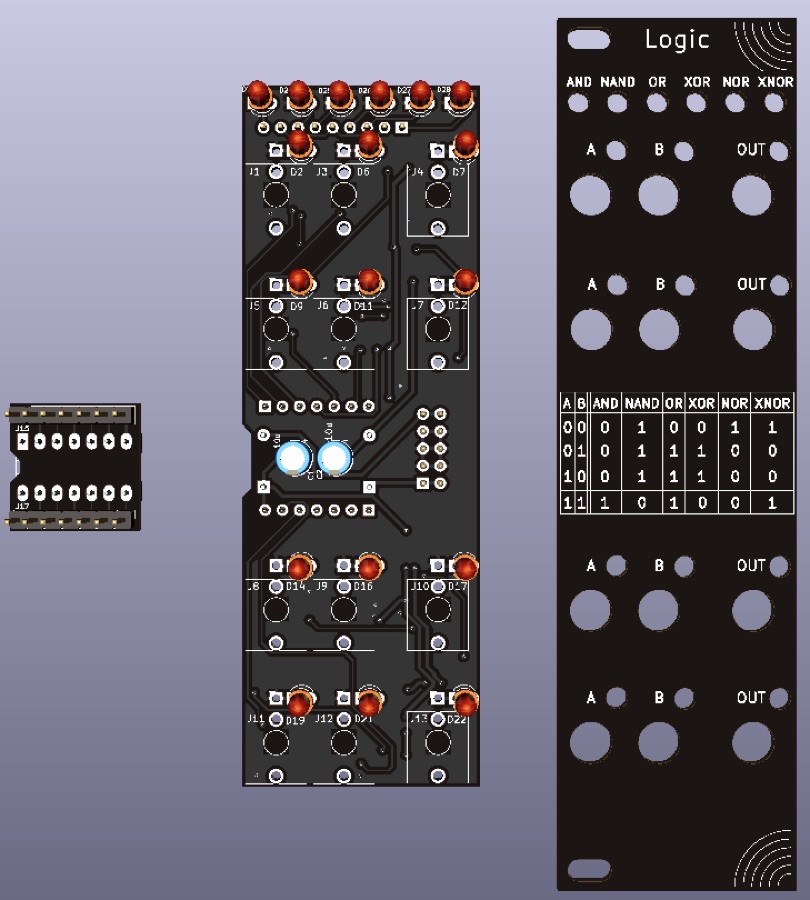

Logic

Maker	Divergent Waves
Type	4 channel logic module with a swappable logic IC on a daughterboard
Mounting	Mixed
Width	7 HP
License	Proprietary (CC BY-NC-SA 4.0, noncommercial so not an open licence)
Difficulty	🌶️ Large through-hole

Clone of Based on a design from the Modular in a Week series by Kristian Blasol. Resistors, diodes and the TL074s are 0805 surface mount, the rest is through hole. Available as a kit on Tindie.

Documentation

• Assembly instructions
• Bill of materials (BOM)
• Schematic

Links

• Source / files on GitHub
• Maker page
