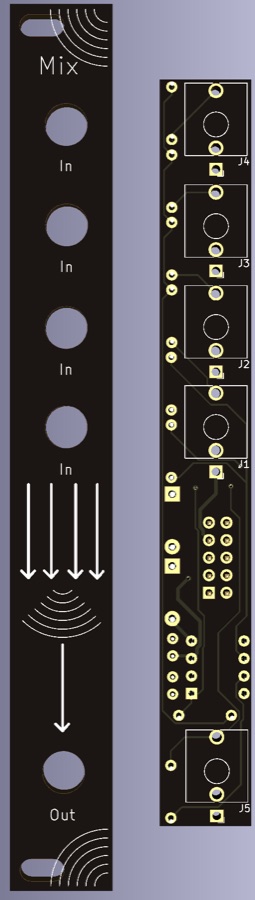

Mix

Maker	Divergent Waves
Type	Compact DC coupled mixer for audio or CV
Mounting	Through-hole
Width	3 HP
License	Proprietary (CC BY-NC-SA 4.0, noncommercial so not an open licence)
Difficulty	🧊 Low-count through-hole

Clone of Cat Girl Synth CGS04 DC mixer. No attenuators, just a plain summing mixer. Signals adding up past about 10V will clip.
