Mult Casino

Maker	Divergent Waves
Type	Clocked signal router that sends an input to one or more random outputs
Mounting	SMD
Width	—
License	Proprietary (CC BY-NC-SA 4.0, noncommercial so not an open licence)
Difficulty	🔥 SMD (0805)

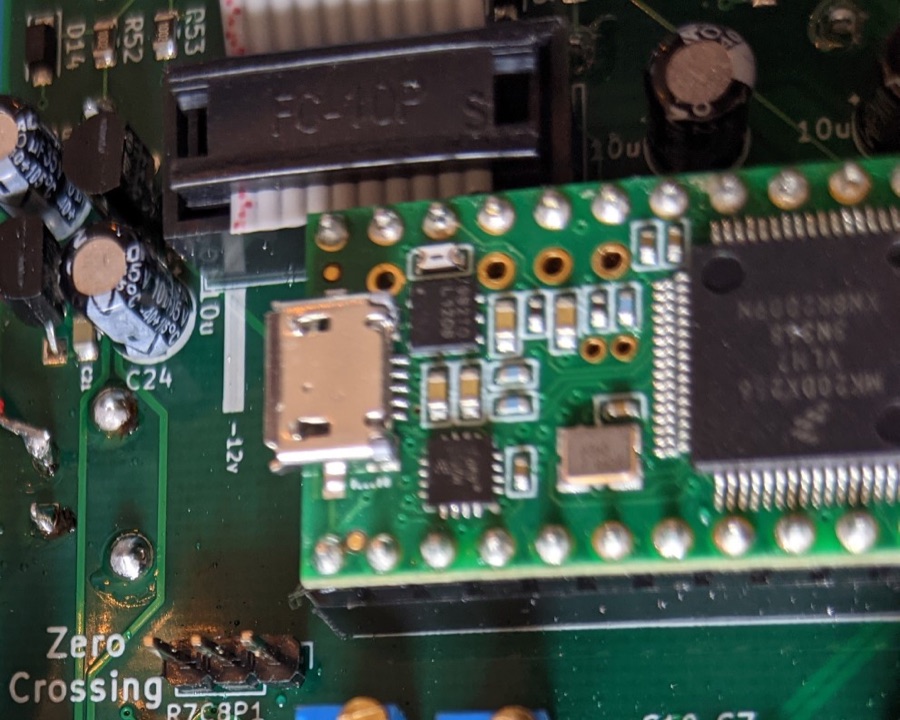

Needs a Teensy 3.2 and three DS1882 muting chips. Only the assembly notes, interactive BOM and photos are in the repository, no KiCad files. One PCB error needs two traces cut and rerouted.

Documentation

• Assembly instructions
• Bill of materials (BOM)

Links

• Source / files on GitHub
• Maker page
