| Maker | Divergent Waves |
|---|---|

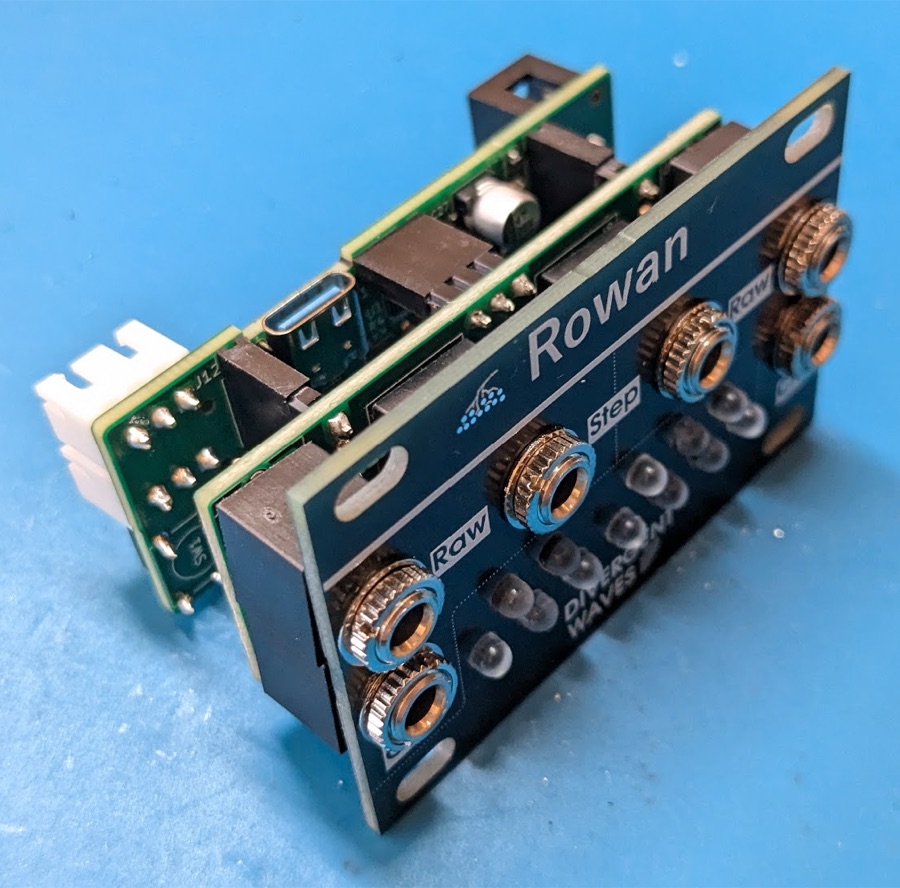

| Type | Sycamore expander adding unquantized and chromatic outputs with a scale display |
| Mounting | SMD |
| Width | — |
| License | Proprietary (CC BY-NC-SA 4.0, noncommercial so not an open licence) |
| Difficulty | 🌋 Fine-pitch SMD |
RP2040 based with a small Arduino sketch. The XL-1010RGBC-WS2812B LEDs used for the scale display are the hardest part to source.
Documentation
Links
This is a third-party open-source design, listed here as a build reference. Specs are researched from public sources; check the source repo and store for the current BOM, panel, and revision before ordering parts. Corrections welcome.
