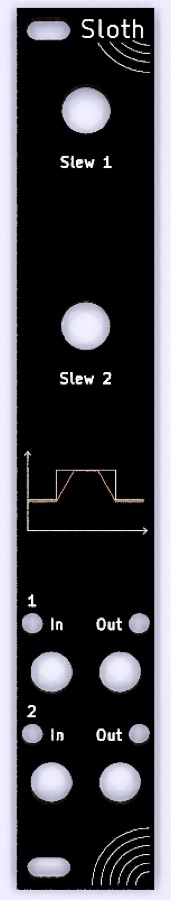

Sloth

Maker	Divergent Waves
Type	Dual slew limiter with state LEDs on inputs and outputs
Mounting	Mixed
Width	4 HP
License	Proprietary (CC BY-NC-SA 4.0, noncommercial so not an open licence)
Difficulty	🌶️ Large through-hole

Clone of Dintree D107 Slew with added state LEDs. The folder is named slew-limiter. At audio rates it works as a basic low pass filter.

Documentation

• Schematic

Links

• Source / files on GitHub
• Maker page
