Through

Maker	Divergent Waves
Type	Passive 1 to 1 patch block, or a jumper configurable multiple
Mounting	Through-hole
Width	4 HP
License	Proprietary (CC BY-NC-SA 4.0, noncommercial so not an open licence)
Difficulty	🧊 Low-count through-hole

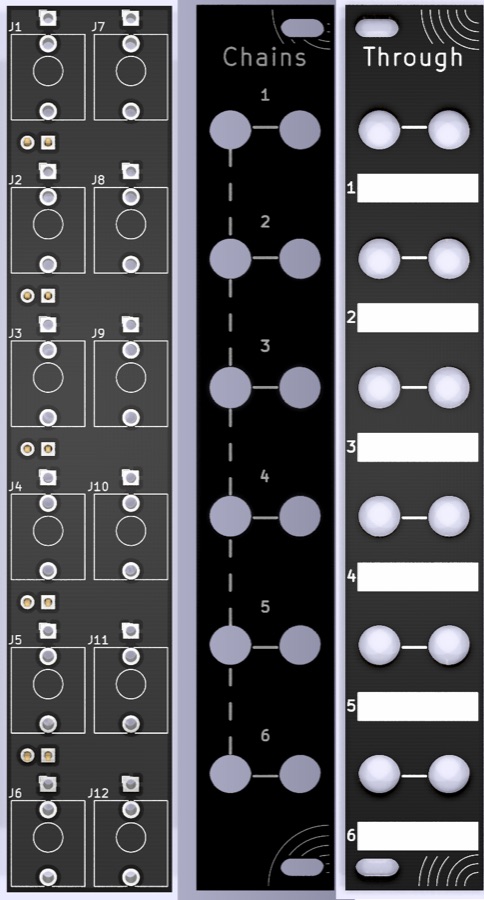

Fully passive with no power connection. The double sided panel lets you use it either way round.
