Twoshot

Maker	Divergent Waves
Type	Dual one shot waveform generator with a 30 mm arcade button
Mounting	Mixed
Width	14 HP
License	Proprietary (CC BY-NC-SA 4.0, noncommercial so not an open licence)
Difficulty	🔥 SMD (0805)

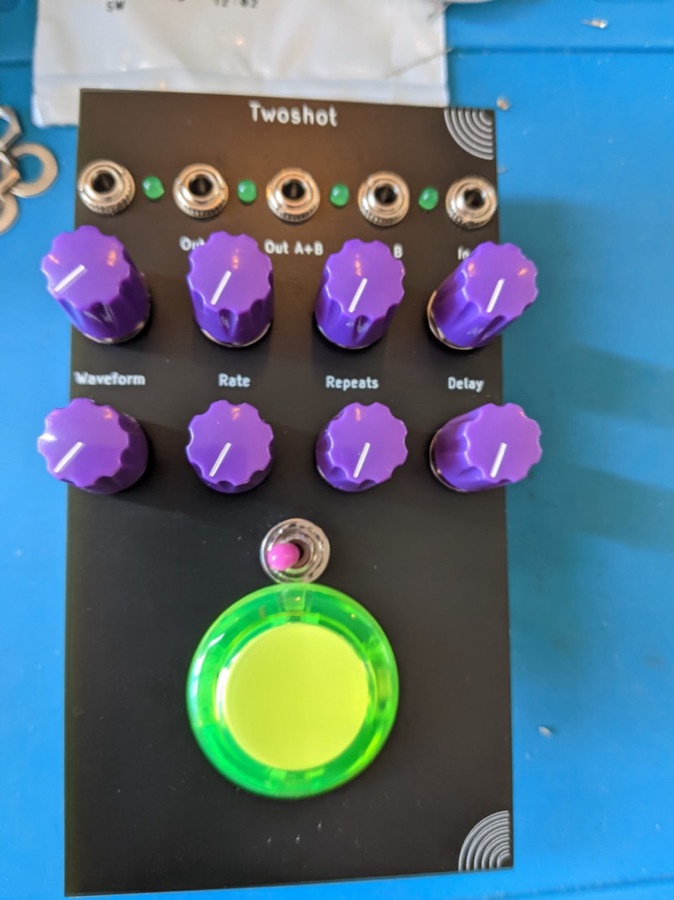

Uses a pair of ElectricDruid ONESHOT chips and 24 op amps. The arcade button is a Seimitsu PS-14-K but any 30 mm snap in part fits.

Documentation

• Schematic

Links

• Source / files on GitHub
• Maker page

More from Divergent Waves

Sycamore Dual random looping sequencer with quantizer DrumFiend Trigger to MIDI converter 3-Phase LFO Three phase sine LFO with bicolour polarity LEDs and a clock input VCA Dual VCA with a CV input and offset per channel VCDO Wavetable oscillator with 1V per octave, bitcrush, glide and a sub oscillator output Cornucopia Eurorack power supply board for Doepfer style busboards with spade connectors Dice Clickless signal router with one input and six outputs, stepped by dice rolls Kinky Lynx Kinks and Links combined: logic, rectifier, noise, sample and hold, mults

More envelope modules

Stages Mutable Instruments Peaks Mutable Instruments ADSR diysynth Cycling Envelope Generator diysynth Looping A-R diysynth Sigma Voxmachina EG Super Synthesis ADSR CubuSynth

This is a third-party open-source design, listed here as a build reference. Specs are researched from public sources; check the source repo and store for the current BOM, panel, and revision before ordering parts. Corrections welcome.
