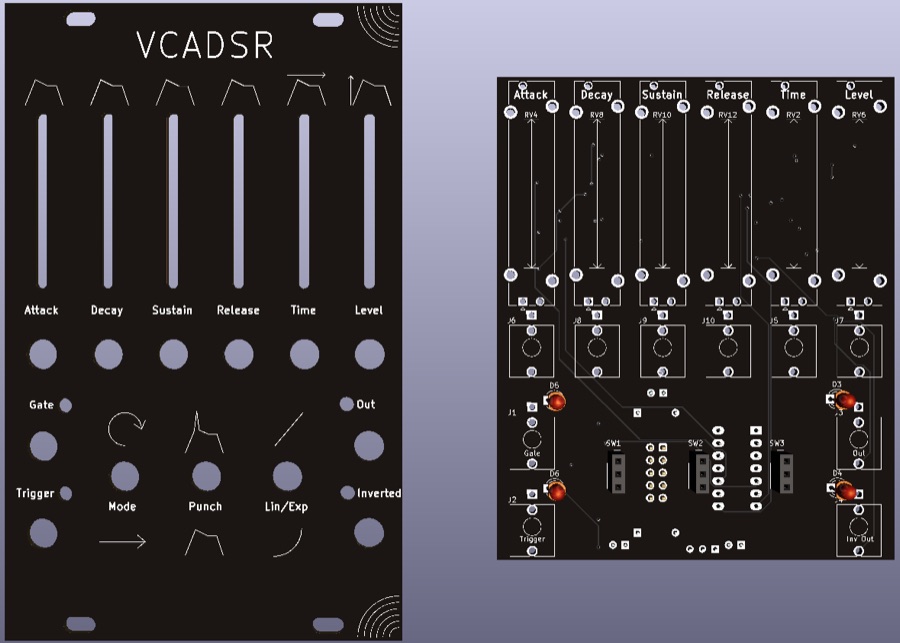

VCADSR

Maker	Divergent Waves
Type	Voltage controlled ADSR with sliders, linear and exponential curves and a punch stage
Mounting	SMD
Width	16 HP
License	Proprietary (CC BY-NC-SA 4.0, noncommercial so not an open licence)
Difficulty	🔥 SMD (0805)

Clone of ElectricDruid EnvGen8 reference design. Built around the ElectricDruid EnvGen8. The mode switch covers gated looping, free looping and normal ADSR. 0805 passives.

Documentation

• Assembly instructions
• Bill of materials (BOM)
• Schematic

Links

• Source / files on GitHub
• Maker page
