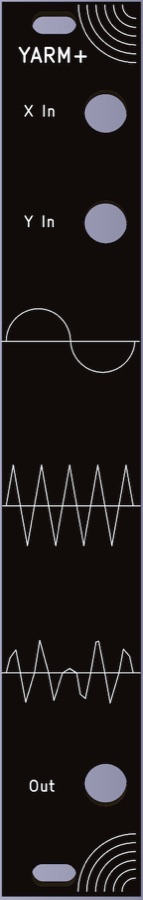

YARM+

Maker	Divergent Waves
Type	Ring modulator built around an MC1496
Mounting	Through-hole
Width	4 HP
License	Proprietary (CC BY-NC-SA 4.0, noncommercial so not an open licence)
Difficulty	🌡️ Medium through-hole

Clone of Rene Schmitz YARM+ ring modulator. MC1496P chips are getting hard to buy new, so check the source before ordering.
