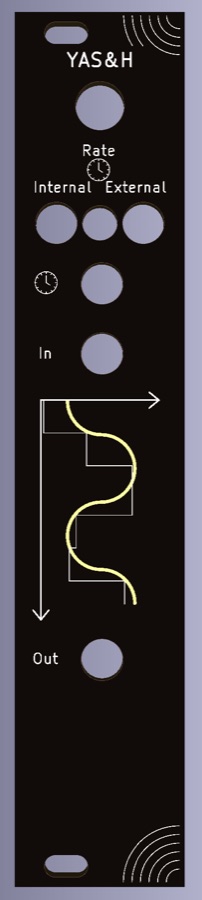

YASH

Maker	Divergent Waves
Type	Sample and hold with switchable internal and external clock
Mounting	Through-hole
Width	5 HP
License	Proprietary (CC BY-NC-SA 4.0, noncommercial so not an open licence)
Difficulty	🌡️ Medium through-hole

Clone of Rene Schmitz YASH sample and hold. Running both clocks at once gives the more interesting results. Needs an LF398 and a matching hold capacitor.

Documentation

• Schematic

Links

• Source / files on GitHub
• Maker page
