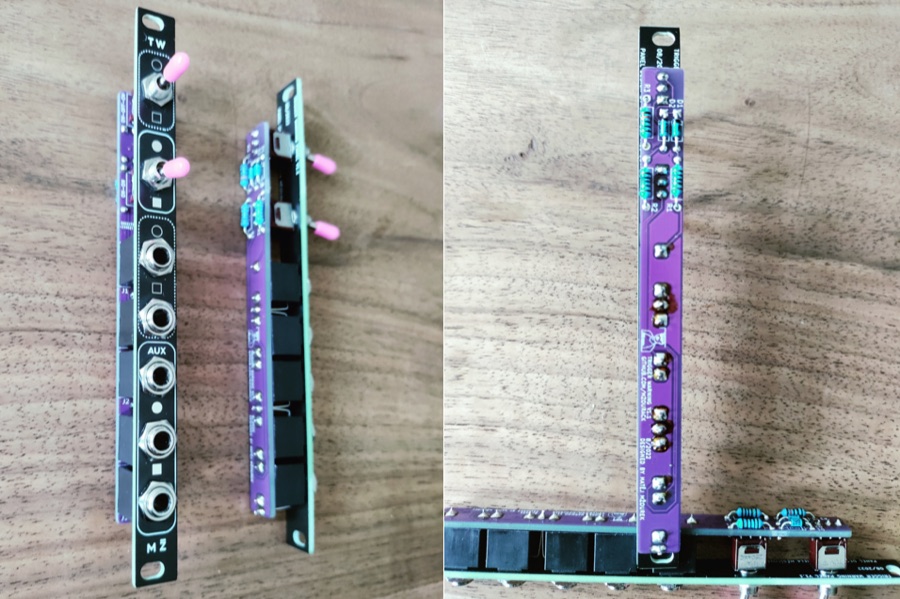

TRIGGER WARNING

Maker	Mzourack
Type	Passive 2HP gate and trigger switch, OR combiner, mute and router
Mounting	Through-hole
Width	2 HP
License	Open source (CC BY 4.0 on the design files)
Difficulty	🧊 Low-count through-hole

Only twelve components are soldered and the module needs no power. Align the jacks and switches carefully or they overhang the 2HP outline.

Documentation

• Bill of materials (BOM)
• Schematic
• Fabrication files

Links

• Source / files on GitHub
• Maker page

More from Mzourack

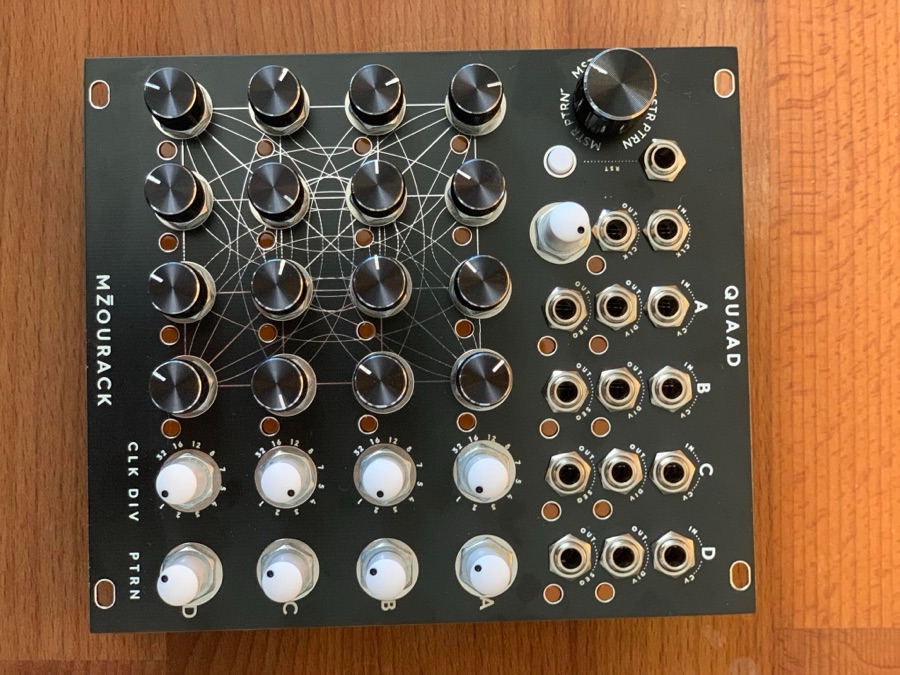

QUAAD Four independent 4 step CV sequencers with clock dividers and CV patterns
