| Maker | squaresolid |
|---|---|

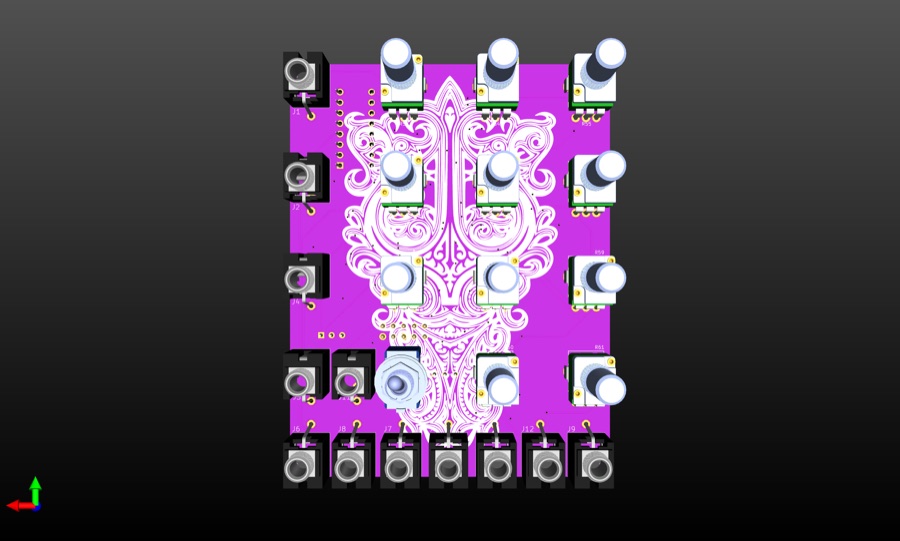

| Type | Two oscillators, a rungler and a state variable filter in one chaotic voice |
| Mounting | Mixed |
| Width | 16 HP |
| License | Proprietary (CC BY-NC 4.0, noncommercial so not an open licence) |
| Difficulty | 🔥 SMD (0805) |
Clone of Redesign of forestcaver's Benjolin 1.6, itself a version of Rob Hordijk's Benjolin. Warning: the silkscreen references for C7 and R39 are swapped in the KiCad files and in the published gerbers, which breaks the resonance circuit if you follow the silkscreen. Builders also report the power header drawn upside down and that Q1 wants a BC547 or BC847 pinout rather than a 2N3904. Passives are 1206 and the SSM2164 is a DIP part, so it hand solders more easily than the original.
Documentation
Links
This is a third-party open-source design, listed here as a build reference. Specs are researched from public sources; check the source repo and store for the current BOM, panel, and revision before ordering parts. Corrections welcome.
