Frames

Maker	TOIL Modular
Type	Four channel keyframer and mixer
Mounting	SMD
Width	—
License	Proprietary (No licence published on this repo)
Difficulty	🌋 Fine-pitch SMD

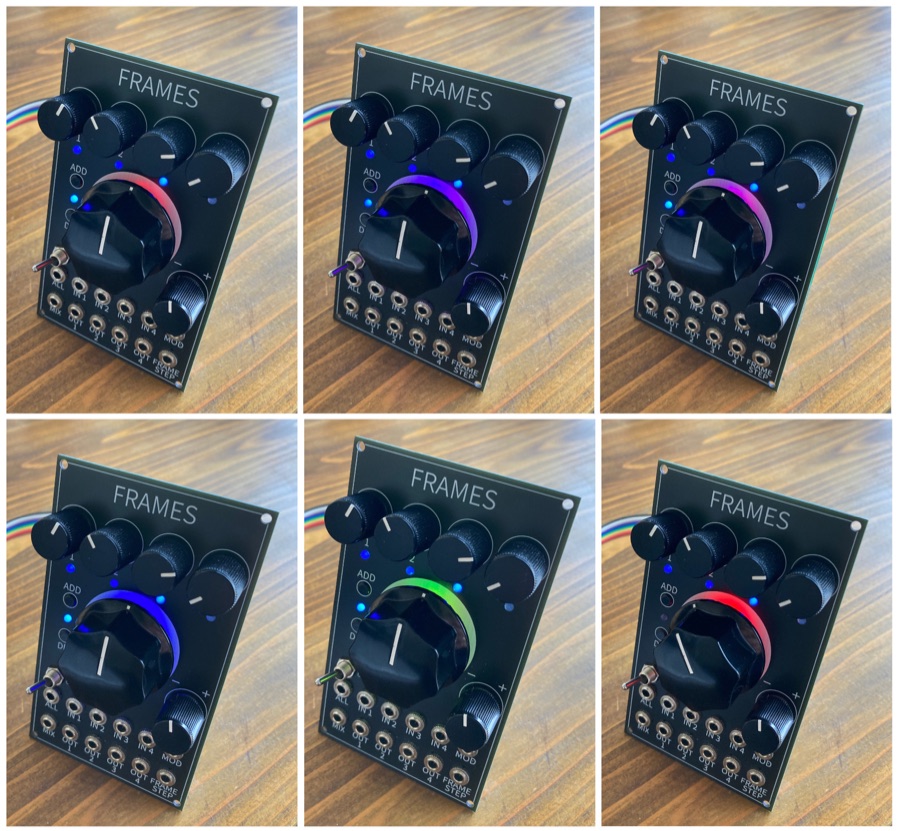

Clone of Mutable Instruments Frames, redesigned around an STM32F103 Blue Pill board.
