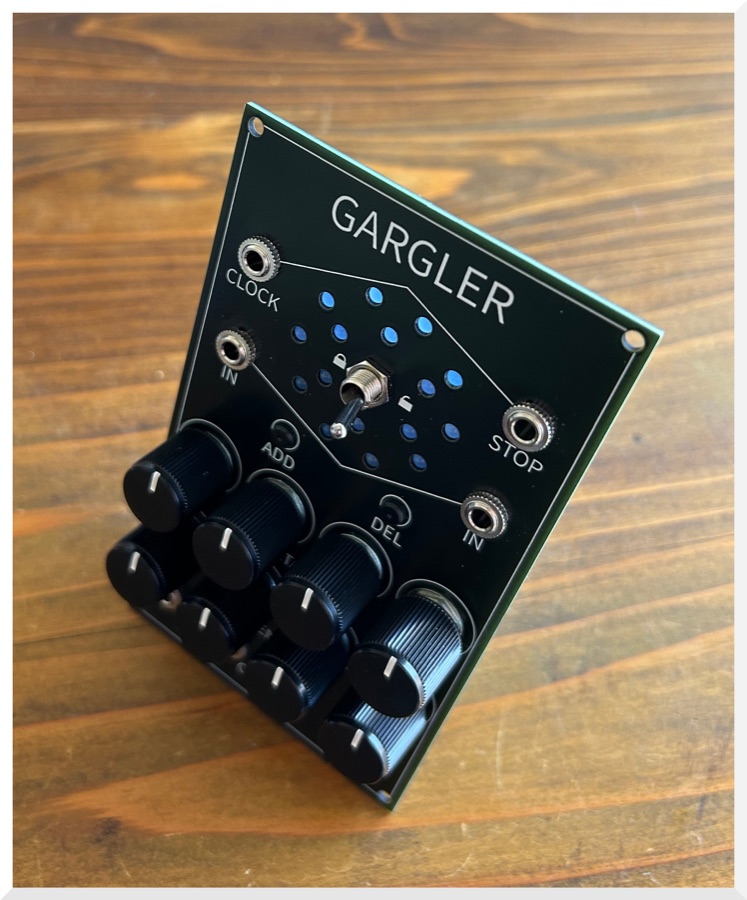

GARGLER

Maker	TOIL Modular
Type	Chaotic four channel CV generator built on a shift register
Mounting	Mixed
Width	—
License	Proprietary (No licence published on this repo)
Difficulty	🔥 SMD (0805)

Clone of Derived from the 8 Bit Cipher from Nonlinear Circuits. A 16 stage shift register drives four CV outputs, each with its own portamento and attenuation. A lock switch turns the register into a 16 step loop.

Documentation

• Assembly instructions
• Bill of materials (BOM)
• Schematic
• Fabrication files (PCBA-ready)

Links

• Source / files on GitHub
• Maker page
