Multi-Stage Phaser

Maker	TOIL Modular
Type	Phase shifter with up to 12 selectable stages
Mounting	Mixed
Width	—
License	Open source (GPL-3.0 over a hardware-only repo)
Difficulty	🔥 SMD (0805)

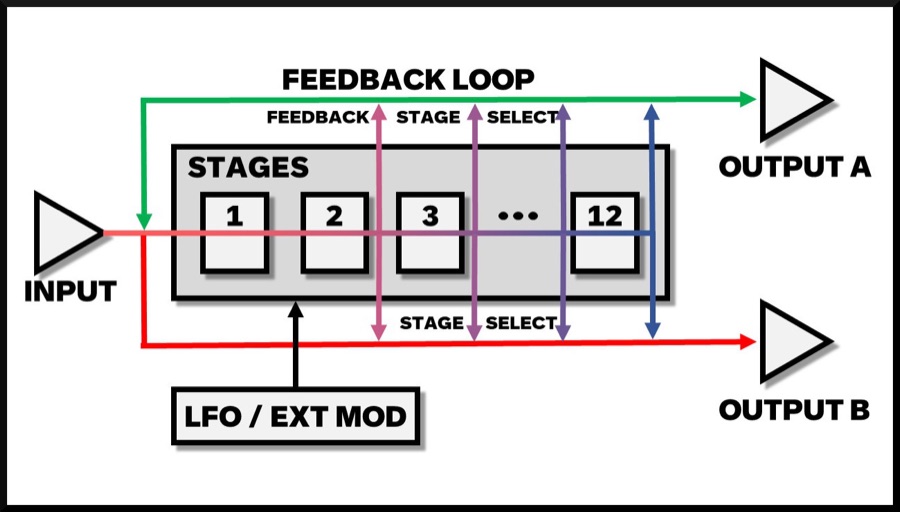

Clone of Based on the Eight Stage Phase Shifter from Music From Outer Space. Two outputs tap different points in the stage chain, one of which also feeds the feedback loop.

Documentation

• Assembly instructions
• Bill of materials (BOM)
• Schematic
• Fabrication files (PCBA-ready)

Links

• Source / files on GitHub
• Maker page

More from TOIL Modular

RAT Dual RAT-style distortion Braids Macro oscillator with dozens of synthesis models CLONK Metallic percussion voice with AD envelope and delayed modulation Clouds Granular texture sampler CONTINUUM Four oscillator drone voice with touch pad volume control Dual Delay Dual PT2399 delay EchoFXXX PT2399 delay with mic or line input and CV over delay time Elements Modal synthesis voice with exciter section

More effect modules

Warps Mutable Instruments Clouds Mutable Instruments PHRSR Super Synthesis CHORUS Super Synthesis ROOM Super Synthesis SCANNER Super Synthesis SoftSynthetics DSP Owen-Patrick Crush Delay v3 Befaco

This is a third-party open-source design, listed here as a build reference. Specs are researched from public sources; check the source repo and store for the current BOM, panel, and revision before ordering parts. Corrections welcome.
