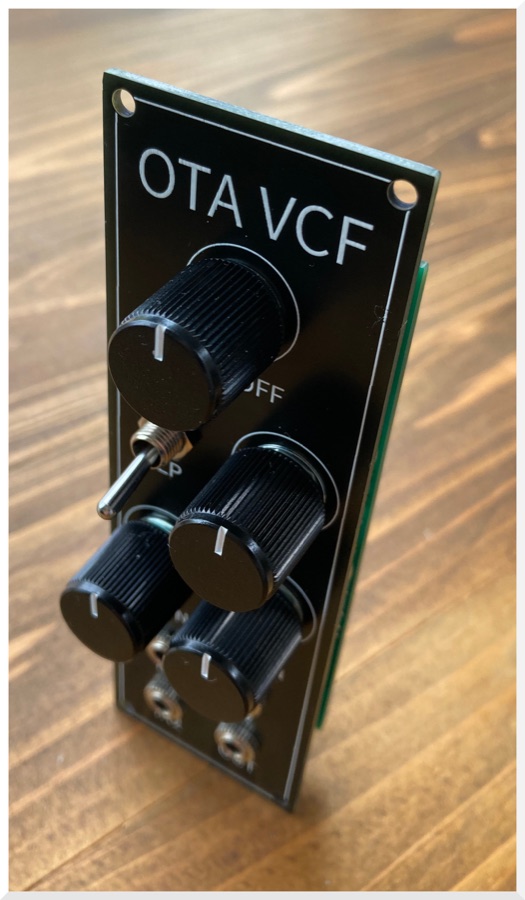

OTA VCF

Maker	TOIL Modular
Type	MS-20 style OTA filter with two audio inputs
Mounting	Mixed
Width	—
License	Open source (GPL-3.0 over a hardware-only repo)
Difficulty	🔥 SMD (0805)

Clone of Based on the Korg MS-20 filter. Single board build. A second audio input lets two signals be filtered together.
