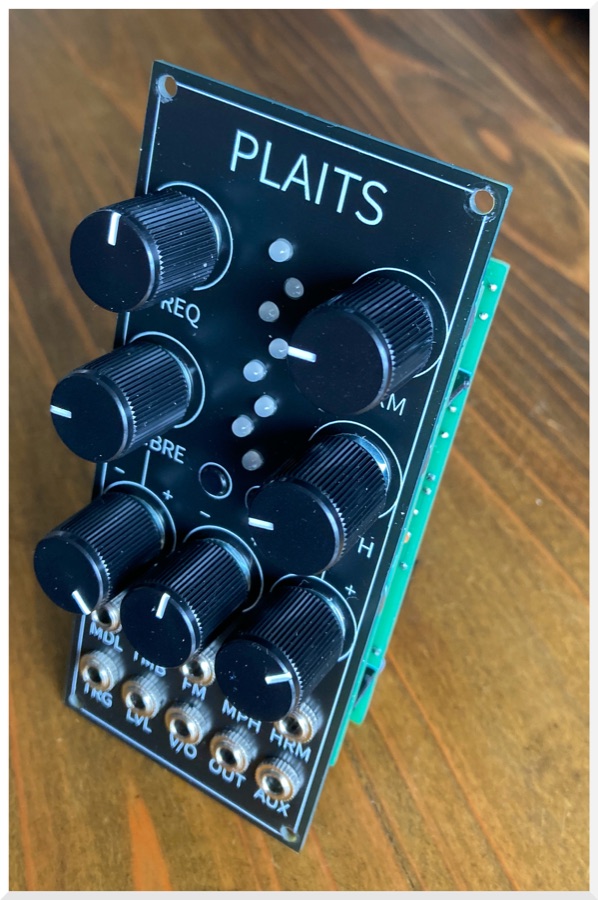

Plaits

Maker	TOIL Modular
Type	Macro oscillator with 16 synthesis models
Mounting	SMD
Width	—
License	Proprietary (No licence published on this repo)
Difficulty	🌋 Fine-pitch SMD

Clone of Mutable Instruments Plaits. The STM32F373CCT6 in a 48 pin LQFP has to be hand soldered. The author reports doing it with a plain iron, thin solder, and plenty of flux.

Documentation

• Assembly instructions
• Bill of materials (BOM)
• Schematic
• Fabrication files (PCBA-ready)

Links

• Source / files on GitHub
• Maker page

More from TOIL Modular

RAT Dual RAT-style distortion Braids Macro oscillator with dozens of synthesis models CLONK Metallic percussion voice with AD envelope and delayed modulation Clouds Granular texture sampler CONTINUUM Four oscillator drone voice with touch pad volume control Dual Delay Dual PT2399 delay EchoFXXX PT2399 delay with mic or line input and CV over delay time Elements Modal synthesis voice with exciter section

More oscillator modules

Braids Mutable Instruments Plaits Mutable Instruments Edges Mutable Instruments CHORD VCO HAGIWO 3340 VCO diysynth Tom Yum Voxmachina 2OPFM Super Synthesis Castor & Pollux Winterbloom

This is a third-party open-source design, listed here as a build reference. Specs are researched from public sources; check the source repo and store for the current BOM, panel, and revision before ordering parts. Corrections welcome.
