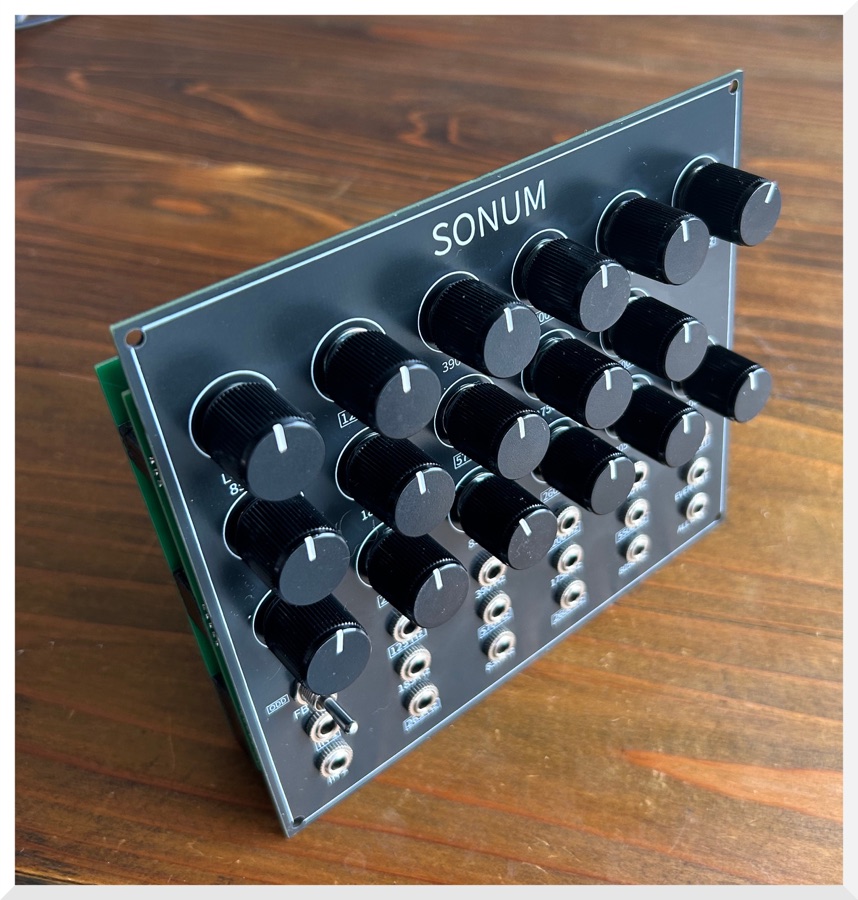

SONUM

Maker	TOIL Modular
Type	CV controlled fixed filter bank with 14 filters
Mounting	Mixed
Width	28 HP
License	Proprietary (No licence published on this repo)
Difficulty	🔥 SMD (0805)

Clone of Based on the Yusynth fixed filter bank and the retuned Analog Output version from Rich Holmes. Twelve band pass filters plus low pass and high pass. Adds CV over band pass volume and a feedback loop from output back to input.

Documentation

• Assembly instructions
• Bill of materials (BOM)
• Schematic
• Fabrication files (PCBA-ready)

Links

• Source / files on GitHub
• Maker page
