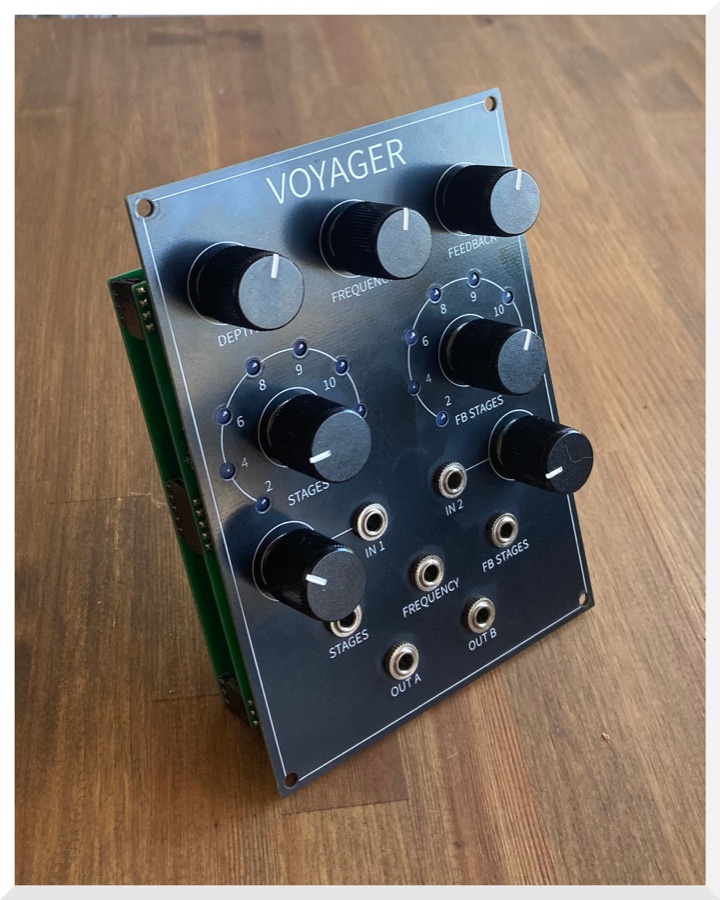

VOYAGER

Maker	TOIL Modular
Type	Multi-stage phase shifter with CV over stage and feedback selection
Mounting	Mixed
Width	18 HP
License	Proprietary (No licence published on this repo)
Difficulty	🔥 SMD (0805)

Clone of A further development of the maker's own Multi-Stage Phaser. Up to 12 stages with manual and voltage control over which stage feeds the output and the feedback loop. There is no internal LFO, so modulation has to come from elsewhere.
