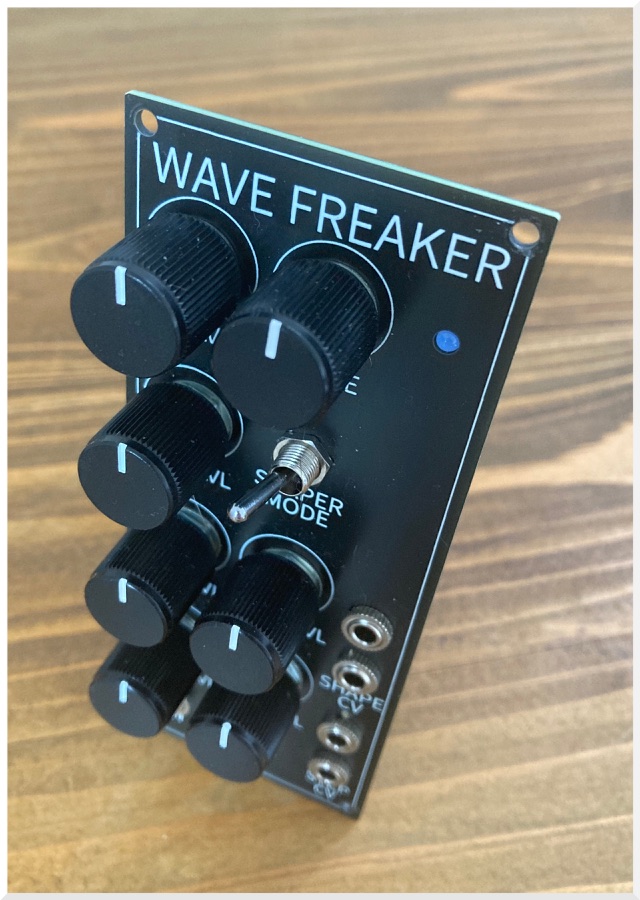

Wave Freaker

Maker	TOIL Modular
Type	Wavefolder with two folding modes and two sub oscillators
Mounting	Mixed
Width	—
License	Open source (GPL-3.0 over a hardware-only repo)
Difficulty	🔥 SMD (0805)

Clone of Based on the Wave Freaker from Music From Outer Space. SMD parts are limited to the bypass caps. Everything else is through-hole.
