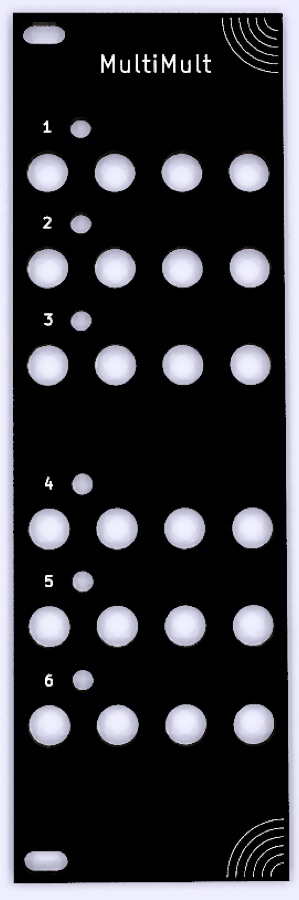

Multimult

Maker	Divergent Waves
Type	6 way DC coupled buffered multiple with per row indicator LEDs
Mounting	SMD
Width	8 HP
License	Proprietary (CC BY-NC-SA 4.0, noncommercial so not an open licence)
Difficulty	🔥 SMD (0805)

Clone of Music From Outer Space DC coupled Voltage Distributor #2. Two rows, each copying one input to three outputs. 0805 passives.

Documentation

• Schematic

Links

• Source / files on GitHub
• Maker page

More from Divergent Waves

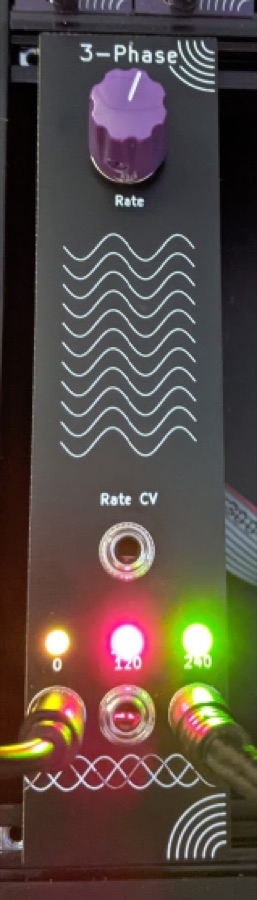

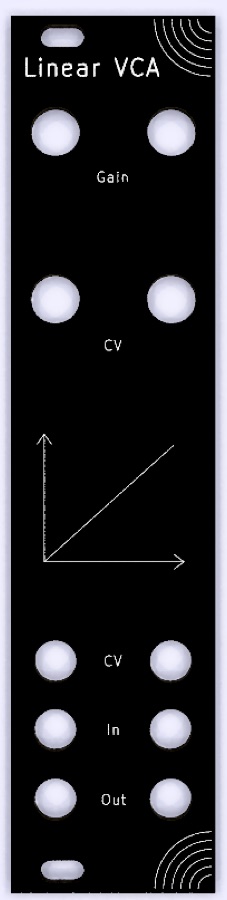

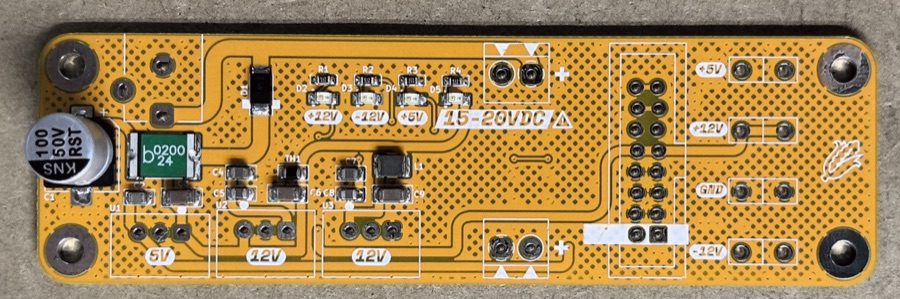

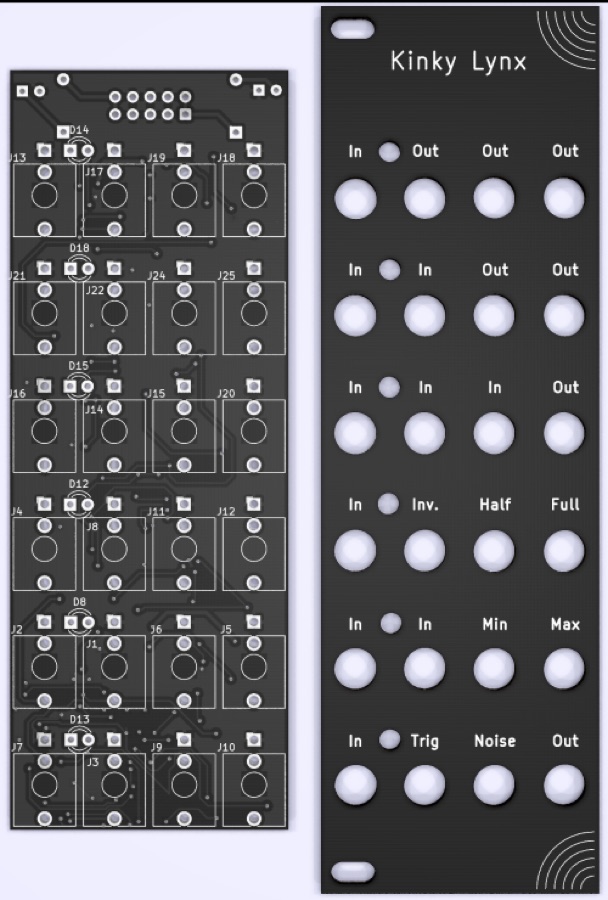

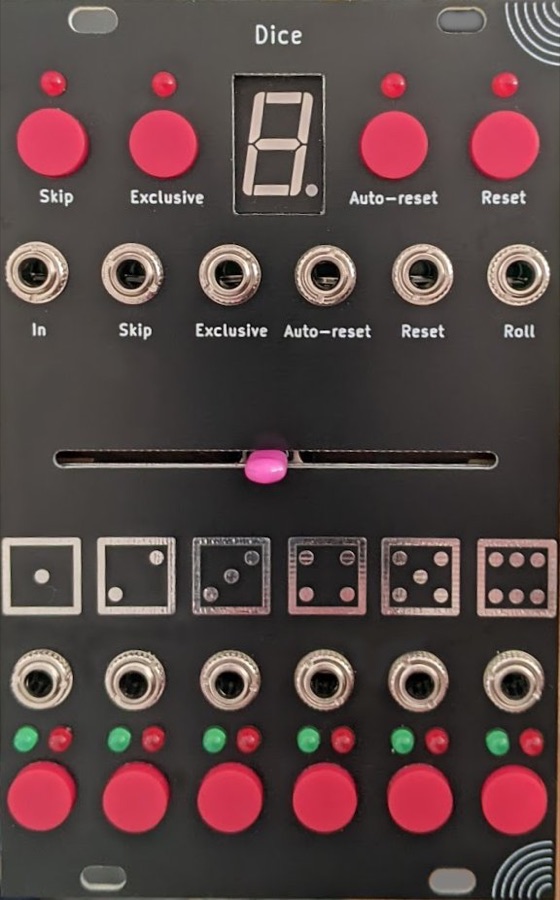

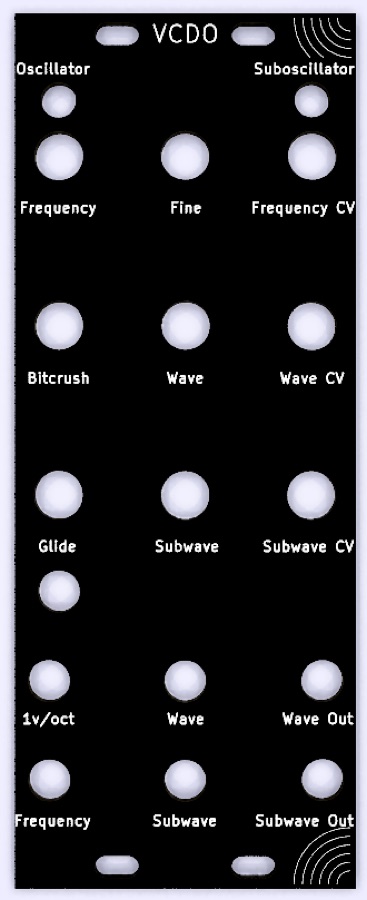

Sycamore Dual random looping sequencer with quantizer DrumFiend Trigger to MIDI converter 3-Phase LFO Three phase sine LFO with bicolour polarity LEDs and a clock input VCA Dual VCA with a CV input and offset per channel VCDO Wavetable oscillator with 1V per octave, bitcrush, glide and a sub oscillator output Cornucopia Eurorack power supply board for Doepfer style busboards with spade connectors Dice Clickless signal router with one input and six outputs, stepped by dice rolls Kinky Lynx Kinks and Links combined: logic, rectifier, noise, sample and hold, mults
