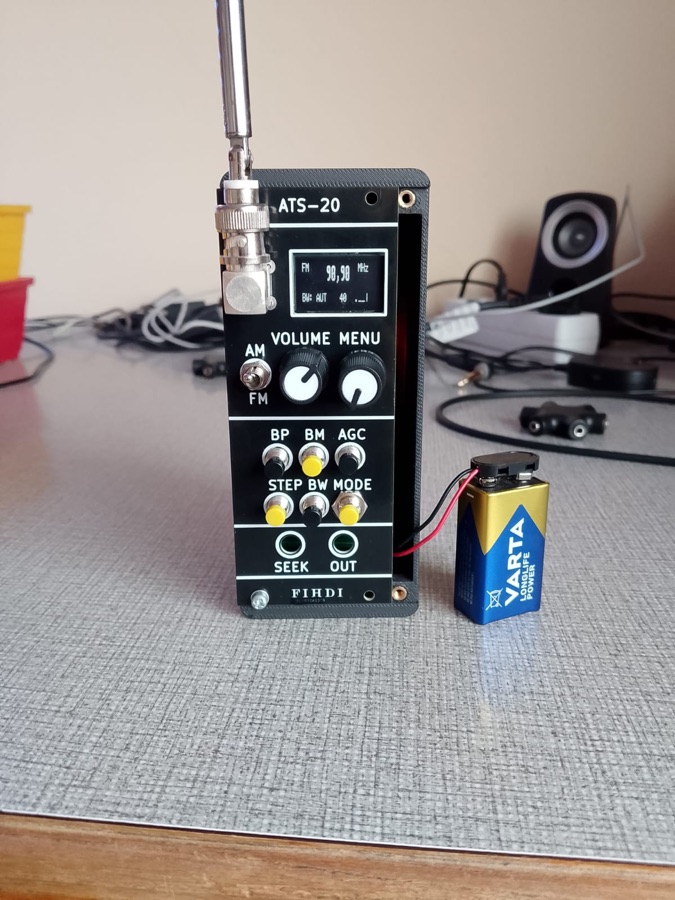

ATS-20 Eurorack

Maker	Fihdi
Type	All band SI4732 radio receiver with OLED display
Mounting	Mixed
Width	10 HP
License	Proprietary (No licence published)
Difficulty	🔥 SMD (0805)

Clone of ATS-20 receiver based on PU2CLR firmware and the SI4732. Jumpers switch it between a Eurorack module and a standalone all-band receiver running off a 12V wall wart or a 9V battery. Marked work in progress; the author is merging the A and B boards.

Documentation

• Bill of materials (BOM)
• Schematic
• Fabrication files (PCBA-ready)

Links

• Source / files on GitHub
• Maker page

More from Fihdi

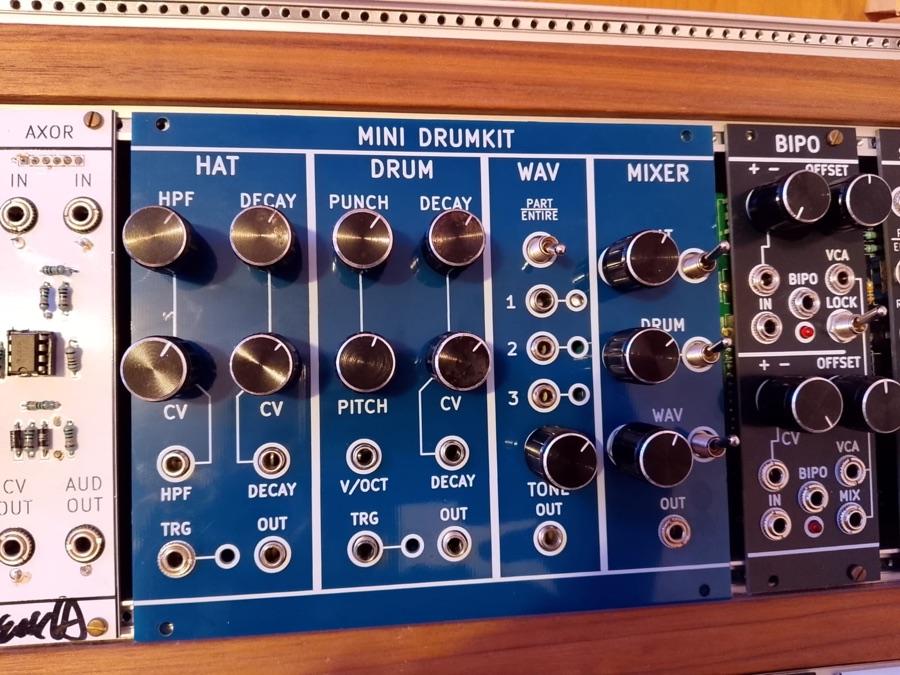

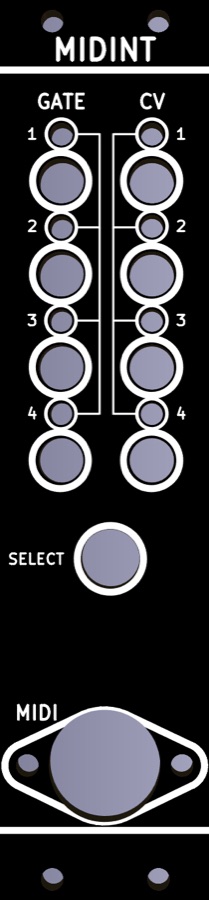

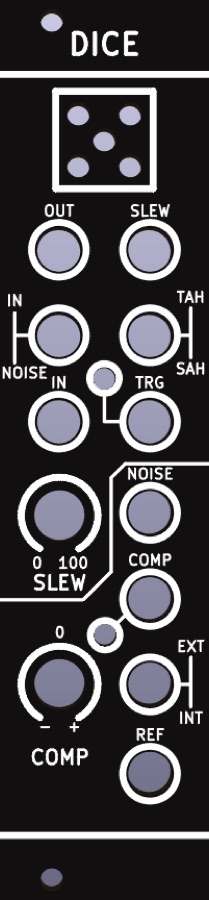

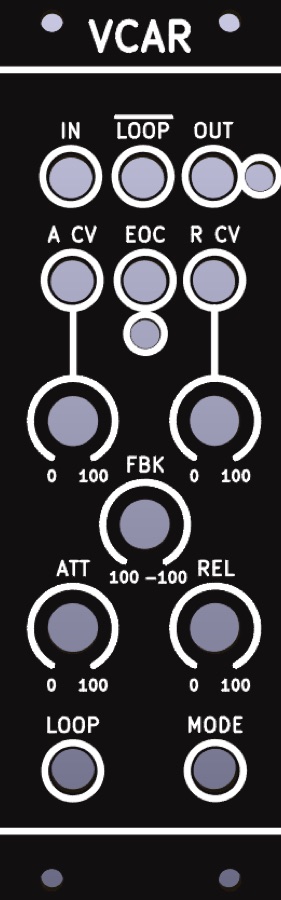

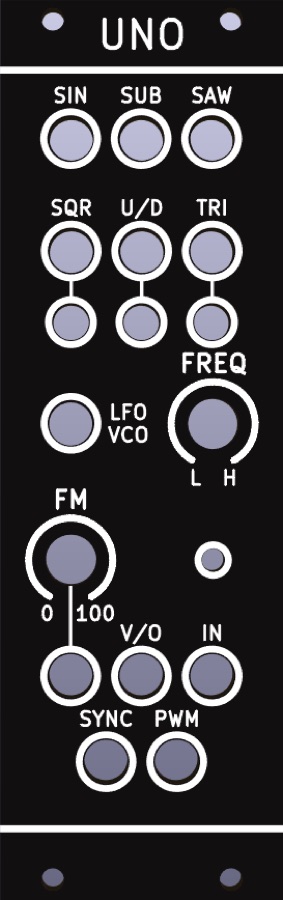

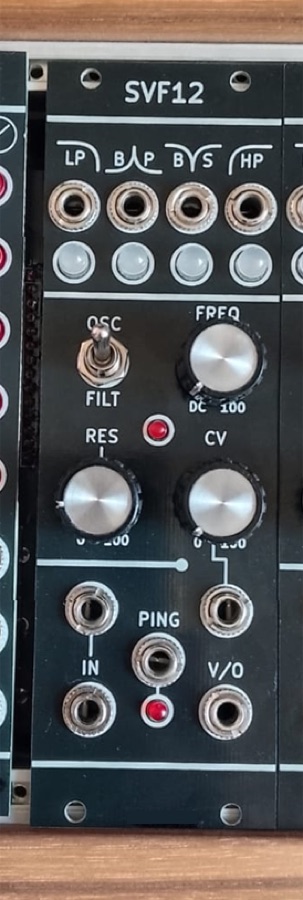

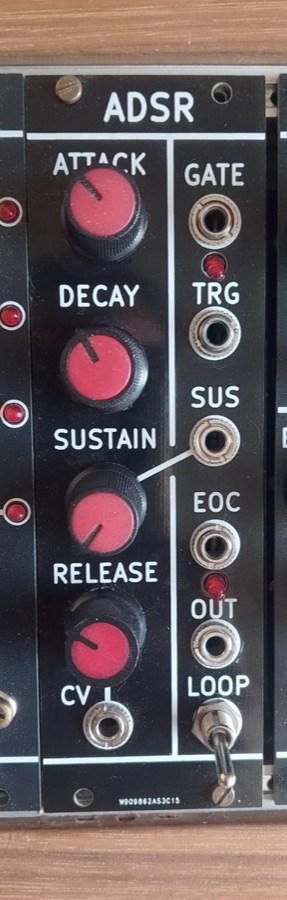

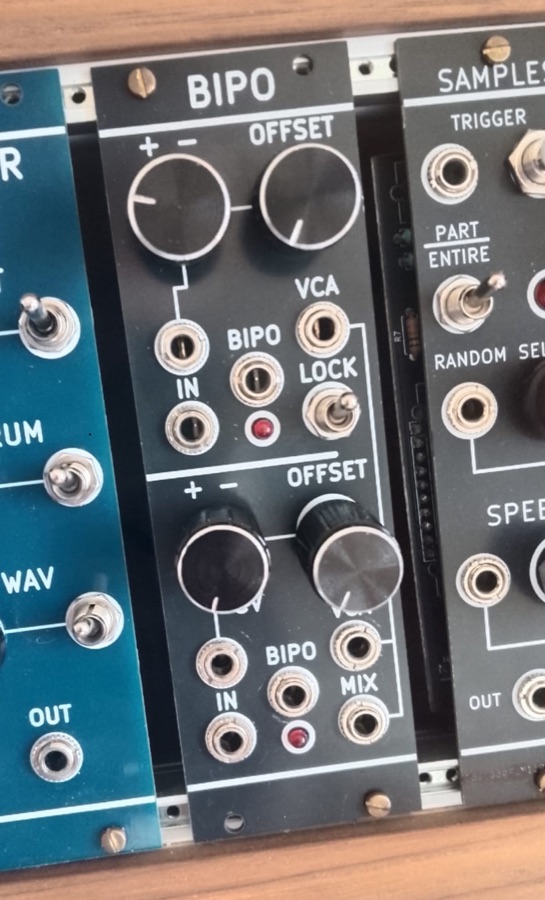

UNO Voltage controlled oscillator and LFO with sync, PWM and sub SVF12 12dB per octave voltage controlled state variable filter BIPO Dual bipolar VCA and ring modulator with lock and mix DICE Sample and hold, white noise and comparator random source SCULPT ADSR envelope with CV over sustain and release, plus loop mode VCAR Voltage controlled attack release envelope and slew limiter MIDINT 8 channel MIDI to CV, gate and trigger interface with expanders MiniDrumkit Three channel WAV player with analog kick and hi-hat
