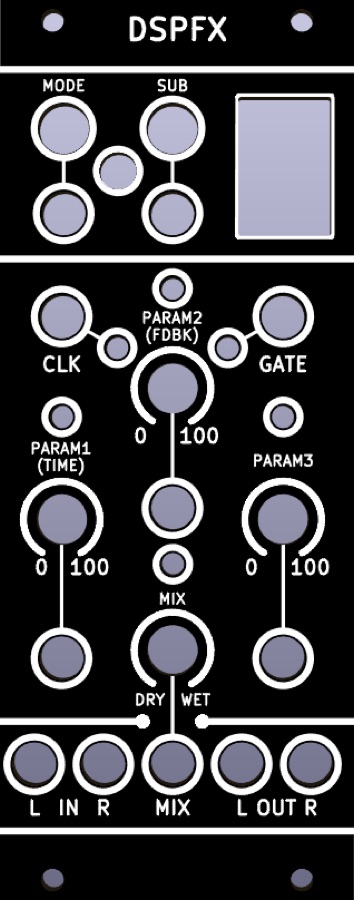

DSP-FX32

Maker	Fihdi
Type	DSP effect module
Mounting	Mixed
Width	10 HP
License	Proprietary (No licence published)
Difficulty	🔥 SMD (0805)

Marked work in progress. Schematic, BOM, panel art and gerbers are committed but the README says nothing about which effects it runs.
