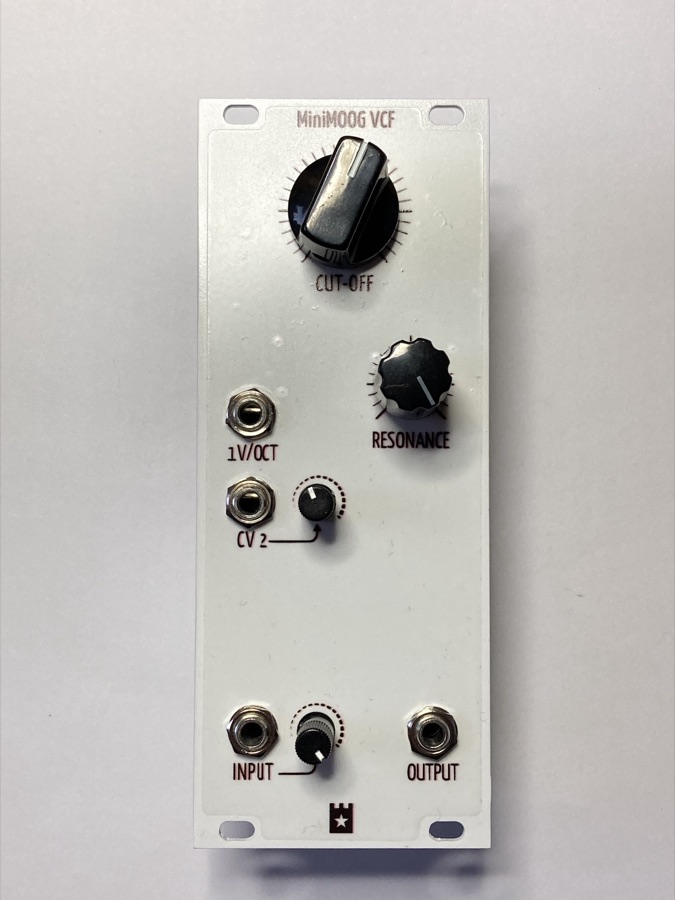

YUSynth Minimoog VCF

Maker	Gerbster
Type	Moog ladder filter from the Minimoog, in Eurorack format
Mounting	Through-hole
Width	—
License	Proprietary (No licence published)
Difficulty	🌡️ Medium through-hole

Clone of Minimoog VCF via YuSynth. Straight adaptation of Yves Usson's YuSynth version of the Minimoog ladder filter.

Documentation

• Bill of materials (BOM)
• Schematic
• Fabrication files (PCBA-ready)

Links

• Source / files on GitHub
• Maker page
