Korg MS20 VCF

Maker	Gerbster
Type	Korg MS20 filter adapted to Eurorack
Mounting	Through-hole
Width	—
License	Proprietary (No licence published)
Difficulty	🌡️ Medium through-hole

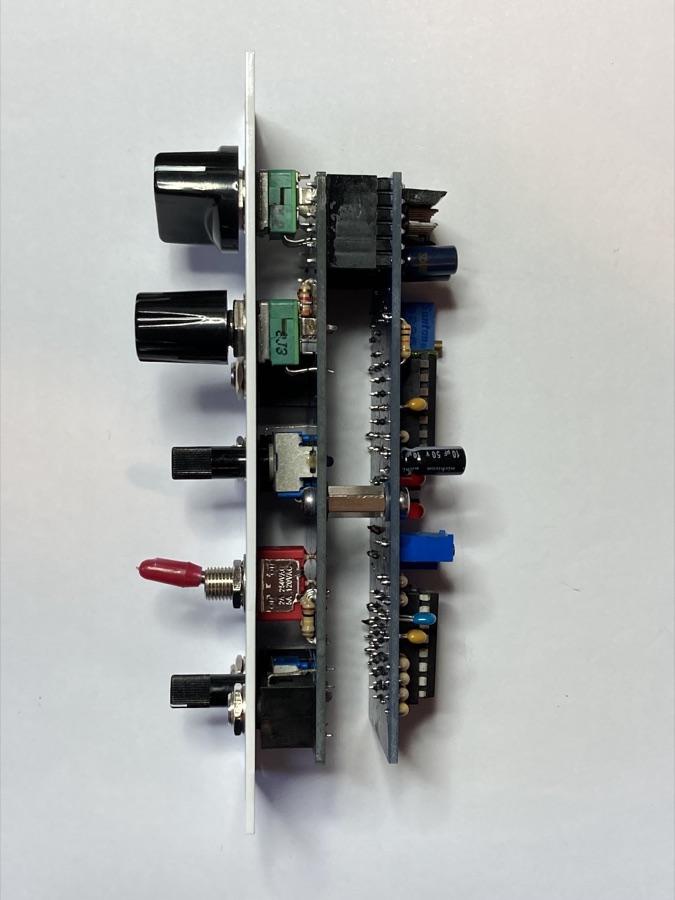

Clone of Korg MS-20 VCF. Mainboard plus IO board. Finished and built.
