YUSynth Ring Modulator

Maker	Gerbster
Type	LM1496 based ring modulator
Mounting	Through-hole
Width	—
License	Proprietary (No licence published)
Difficulty	🌡️ Medium through-hole

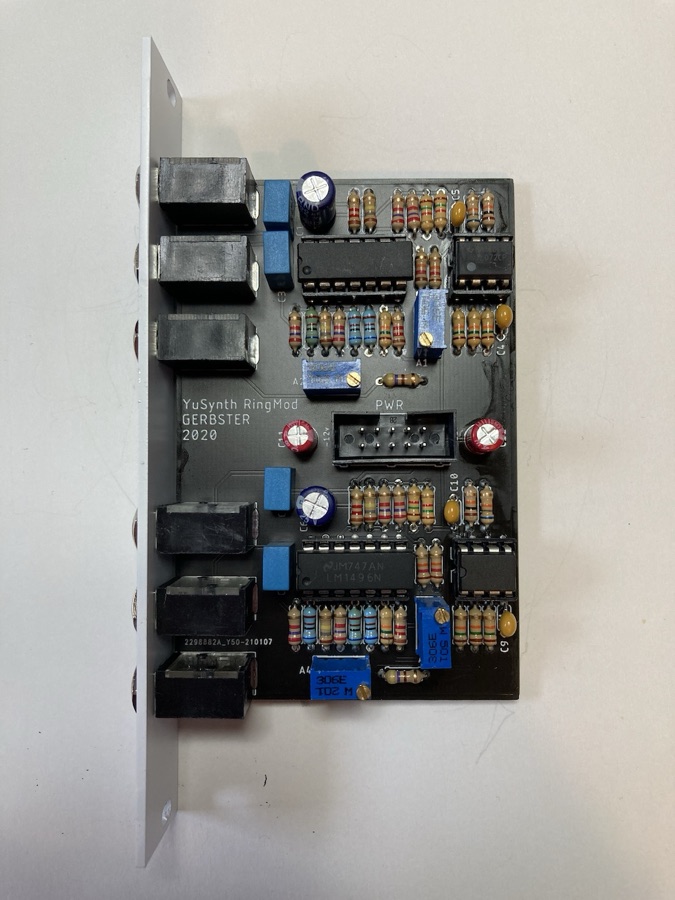

Clone of YuSynth ring modulator. Single board build of the YuSynth ring modulator circuit.
