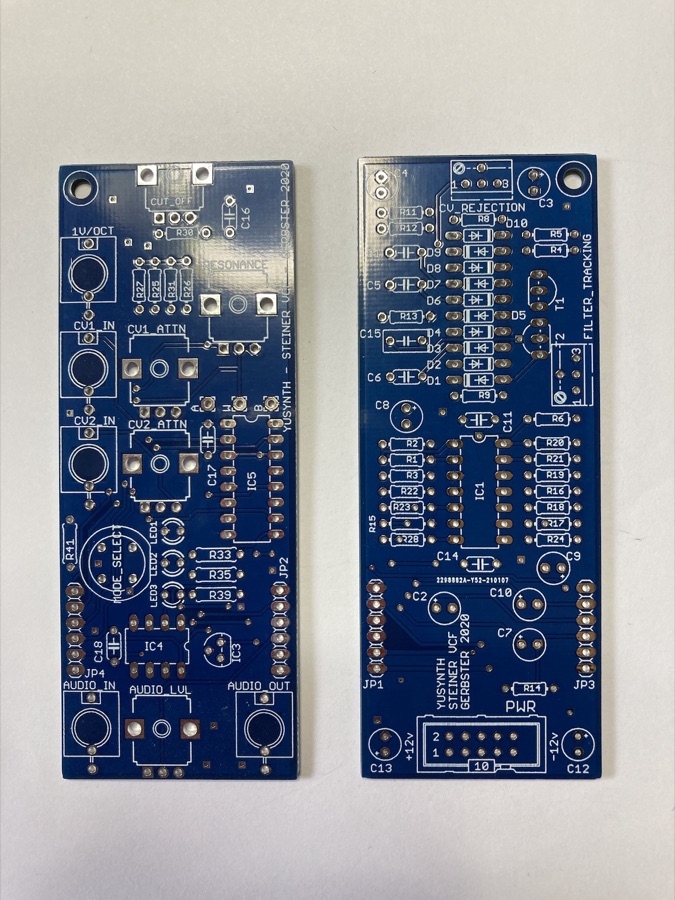

YUSynth Steiner VCF

Maker	Gerbster
Type	Steiner multimode filter with digital mode selection
Mounting	Through-hole
Width	—
License	Proprietary (No licence published)
Difficulty	🌶️ Large through-hole

Clone of Steiner-Parker filter via YuSynth. Filter core follows the YuSynth design, but the rotary mode switch is replaced by an ATtiny driving an ADG412 SPST switch. That adds HP+BP and LP+BP to the usual HP, BP, LP and AP modes. Firmware still needs a rewrite.

Documentation

• Bill of materials (BOM)
• Schematic
• Fabrication files (PCBA-ready)

Links

• Source / files on GitHub
• Maker page

More from Gerbster

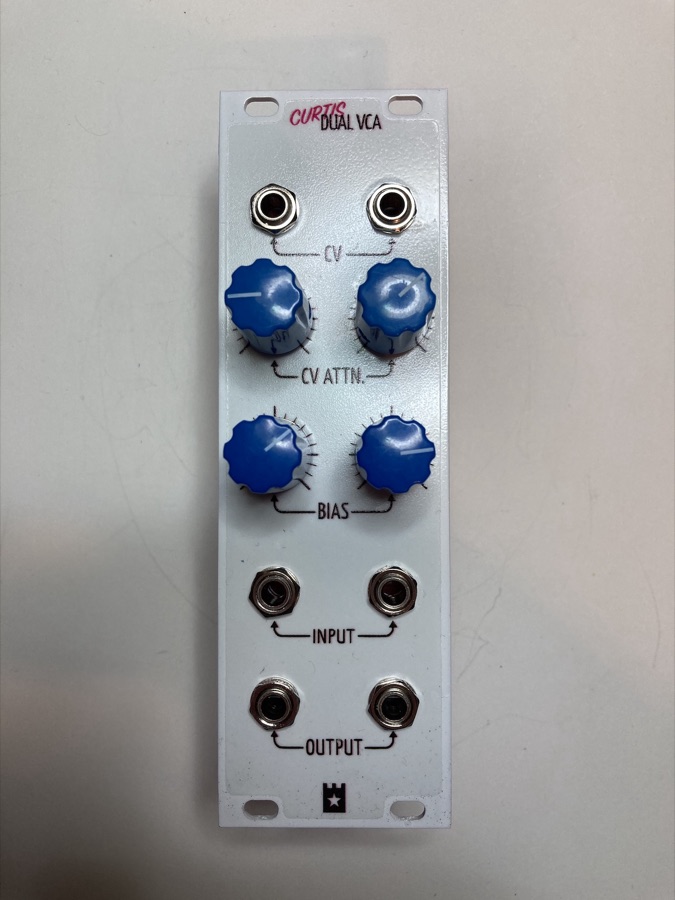

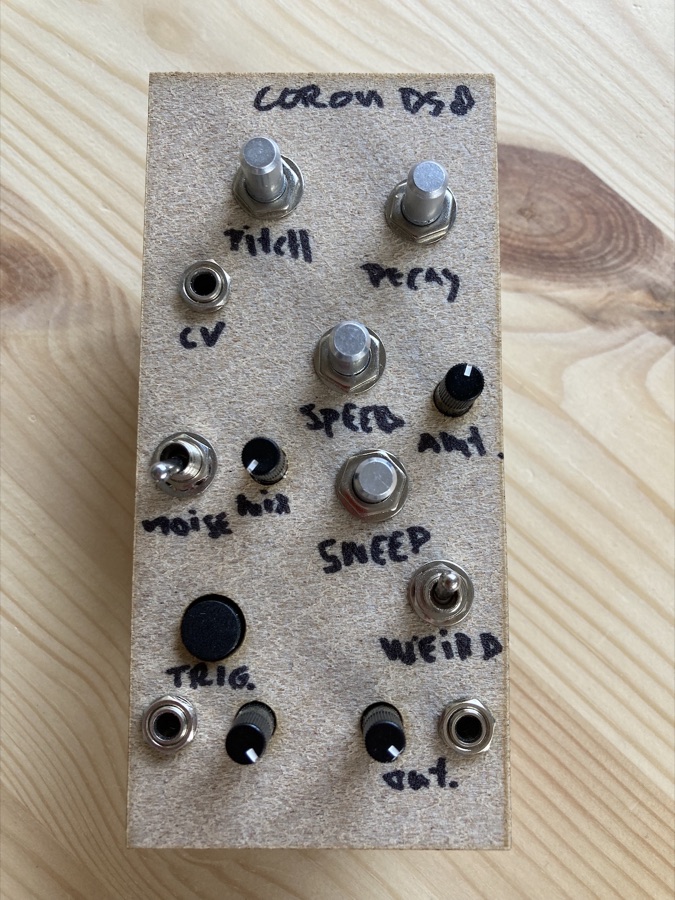

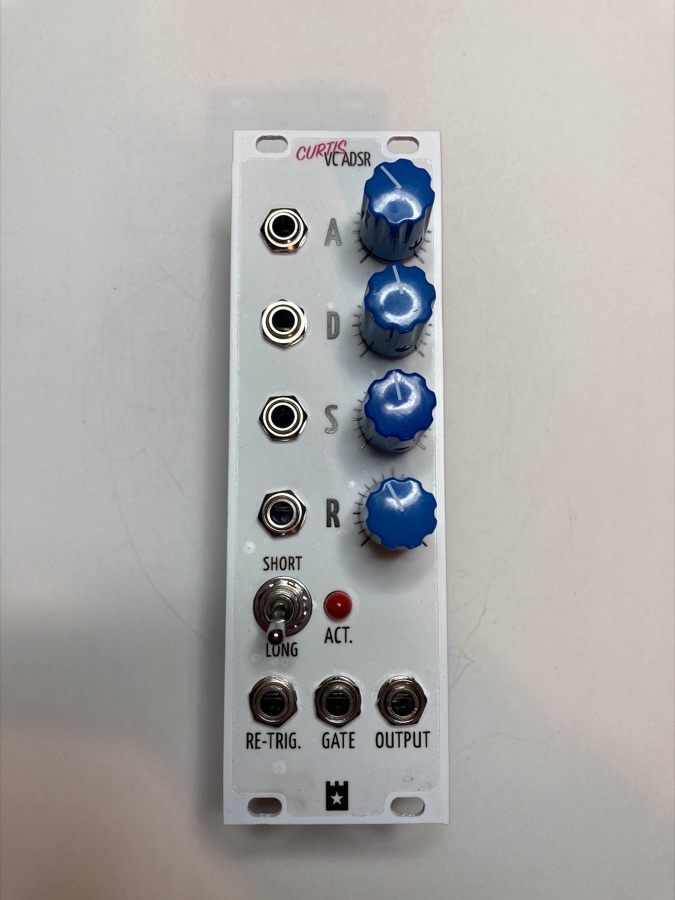

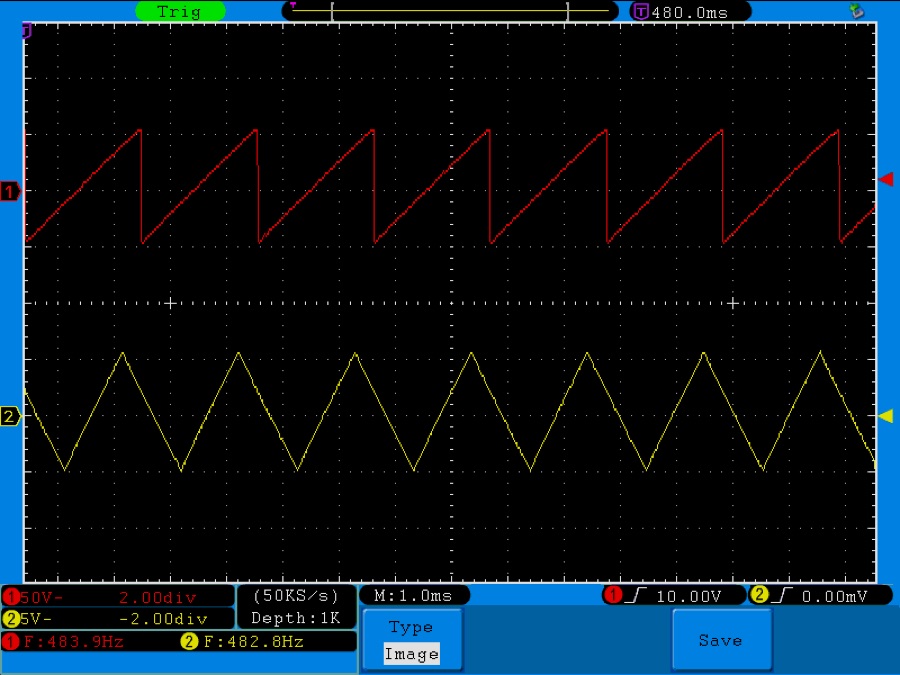

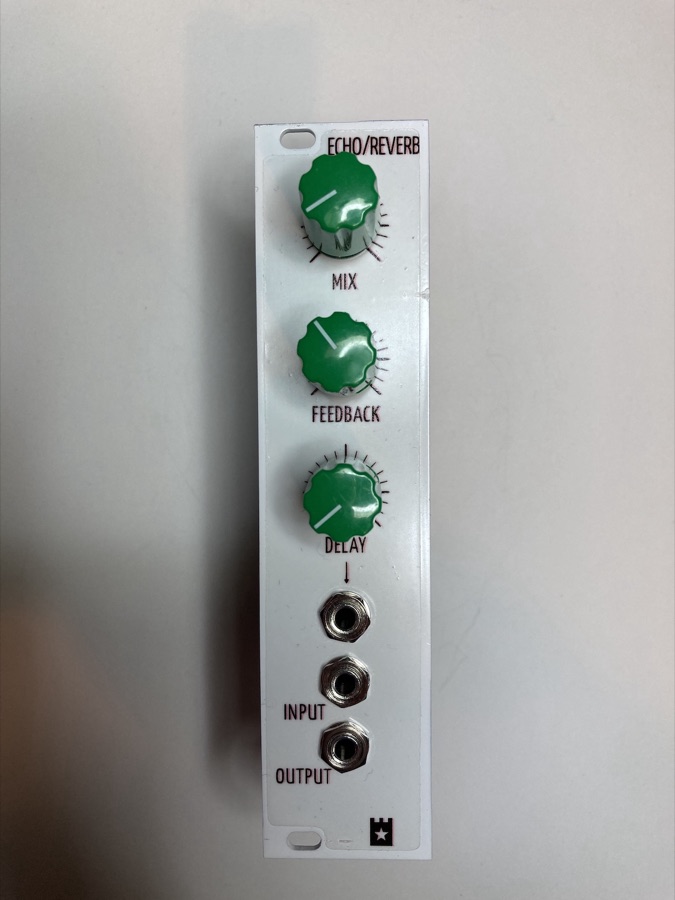

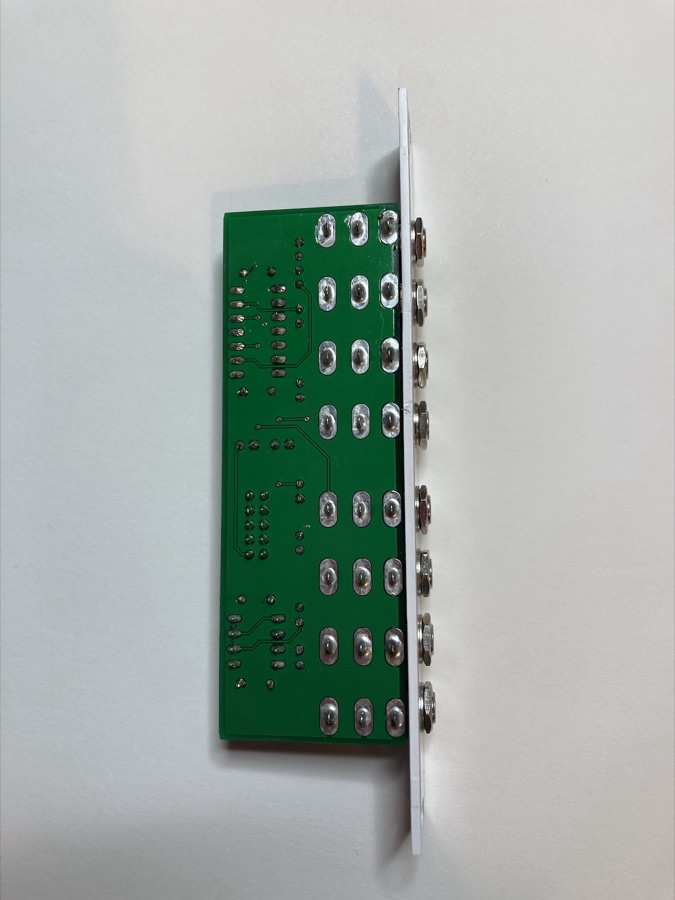

2x3 / 1x7 Buffer Active buffered multiple, either two 1-to-3 blocks or one 1-to-7 5 Channel Mixer Simple five input audio mixer CoronDS8 Clone Clone of the Coron DS8 drum synth adapted to Eurorack Curtis VCO CEM3340 style VCO with saw, triangle, sine and pulse at a uniform 10 Vpp Curtis Dual VCA Dual VCA built on the CEM3360 Curtis VC ADSR Voltage controlled ADSR envelope generator on the CEM3310 CV-Utils Small CV utility module Echo/Reverb PT2399 based echo and reverb unit
