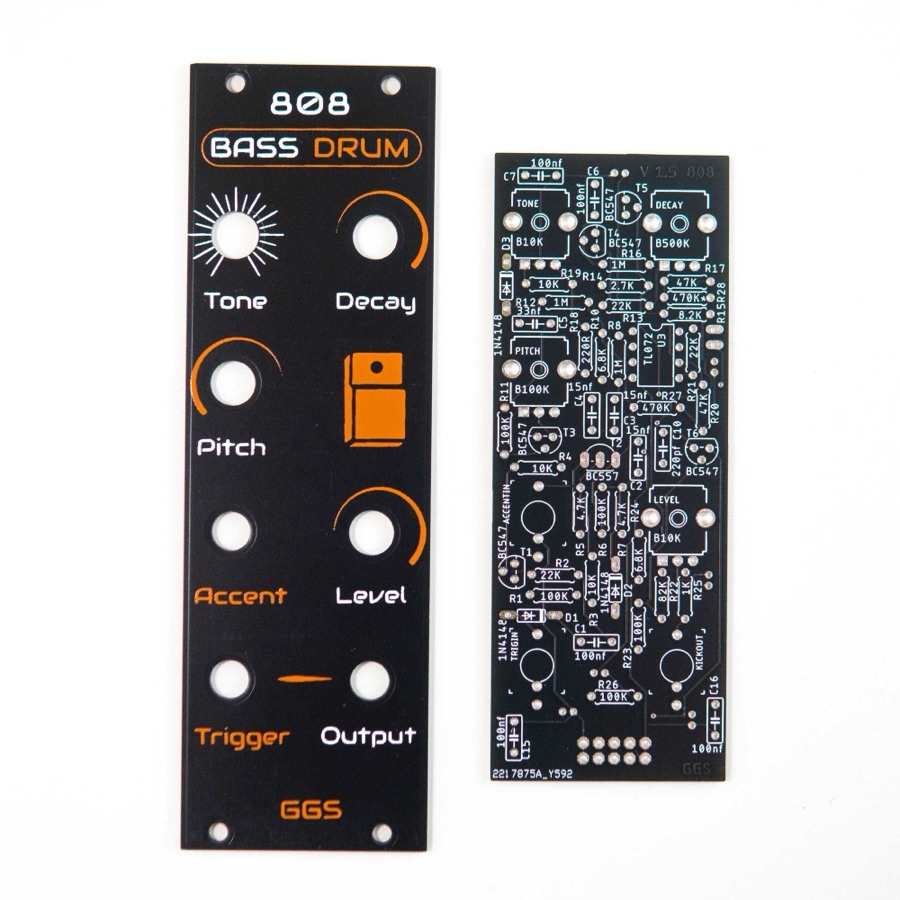

808 Bass Drum

Maker	Guru Gara Synth
Type	TR-808 bass drum voice with pitch, tone, decay and level
Mounting	Through-hole
Width	8 HP
License	Proprietary (No licence published)
Difficulty	🌡️ Medium through-hole

Clone of Roland TR-808 bass drum circuit. Adds a pitch control and an optional resistor for a longer decay. No build document is published for this one.
