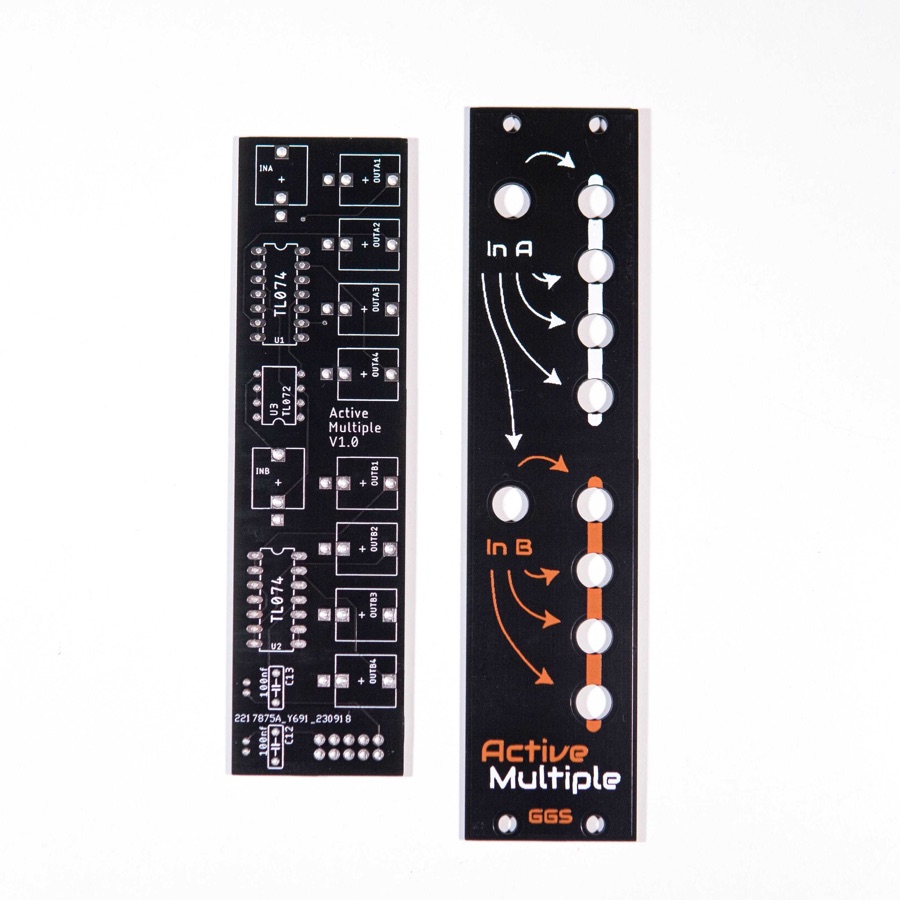

Active Multiple

Maker	Guru Gara Synth
Type	Buffered multiple, two by four or one by eight
Mounting	Through-hole
Width	6 HP
License	Proprietary (No licence published)
Difficulty	🧊 Low-count through-hole

Switched jacks let it run as two four way mults or one eight way. Buffered, so pitch CV does not sag.

Documentation

• Assembly instructions
• Bill of materials (BOM)
• Schematic

Links

• Maker page
• Buy: Guru Gara Synth (PCB and panel kit)
