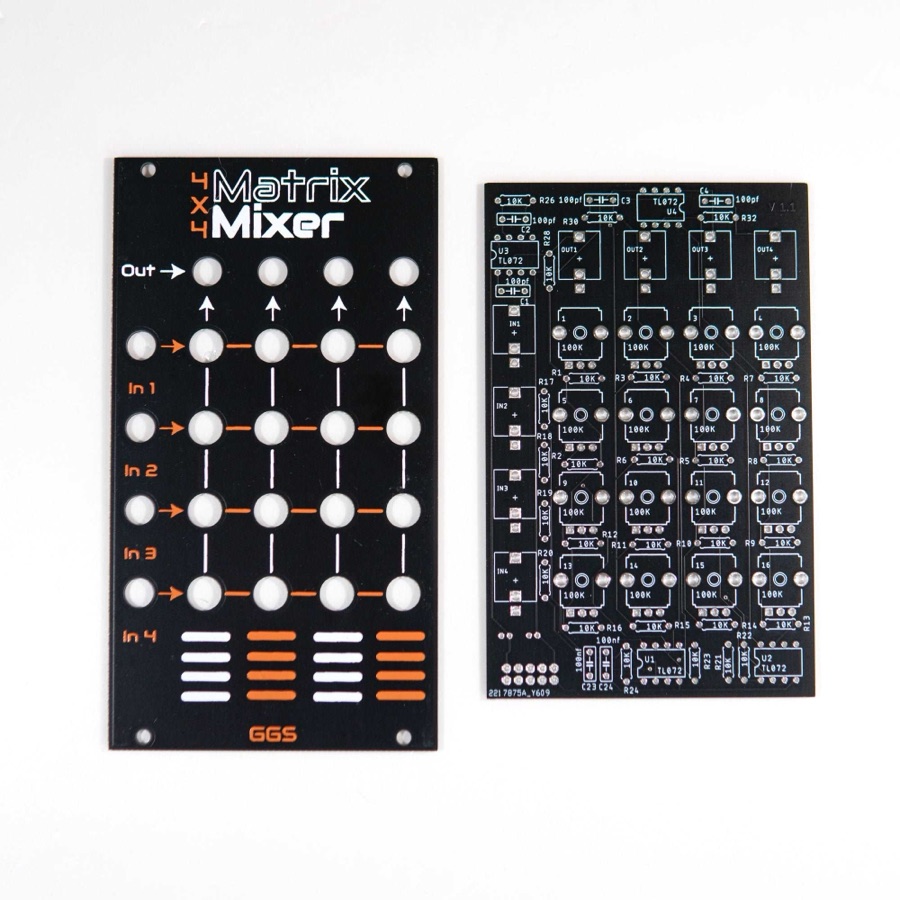

Matrix Mixer

Maker	Guru Gara Synth
Type	Four by four matrix mixer for audio and CV
Mounting	Through-hole
Width	14 HP
License	Proprietary (No licence published)
Difficulty	🌶️ Large through-hole

Sixteen level pots, so it is a long but repetitive build. Any input to any output with its own level.

Documentation

• Assembly instructions
• Bill of materials (BOM)
• Schematic

Links

• Maker page
• Buy: Guru Gara Synth (PCB and panel kit)
