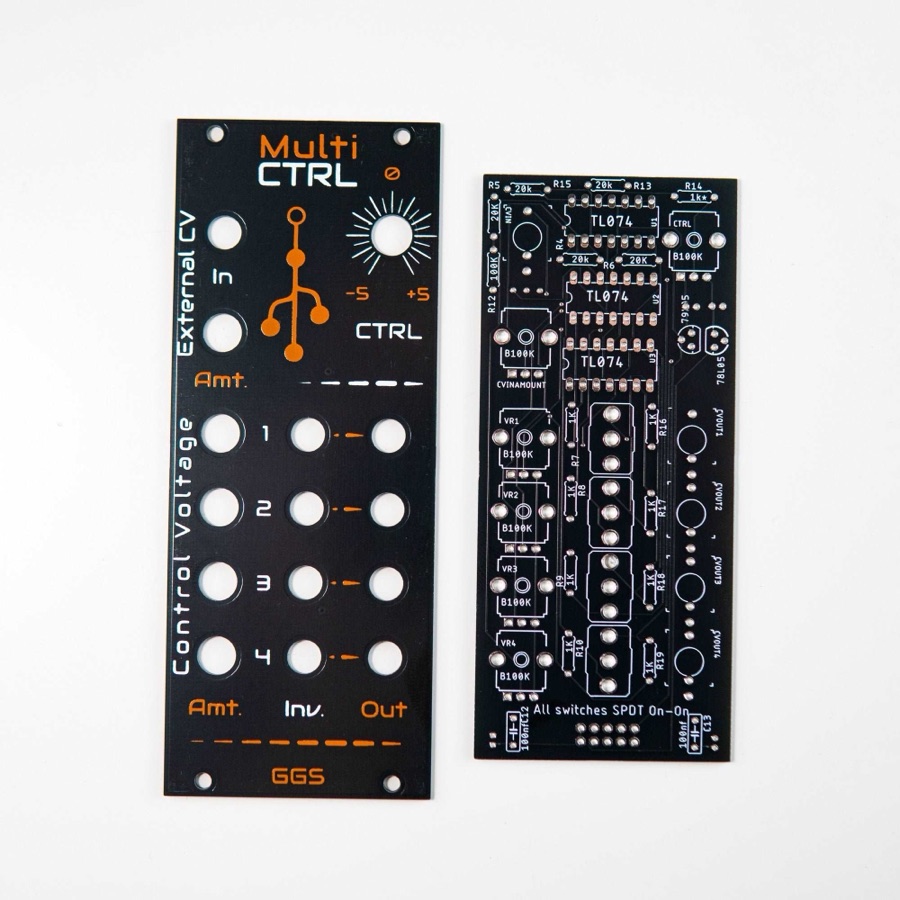

Multi CTRL

Maker	Guru Gara Synth
Type	One knob generating bipolar CV across four outputs
Mounting	Through-hole
Width	10 HP
License	Proprietary (No licence published)
Difficulty	🌡️ Medium through-hole

Macro control: one knob swings minus 5V to plus 5V and each of the four outputs has its own amount and invert.

Documentation

• Assembly instructions
• Bill of materials (BOM)
• Schematic

Links

• Maker page
• Buy: Guru Gara Synth (PCB and panel kit)
