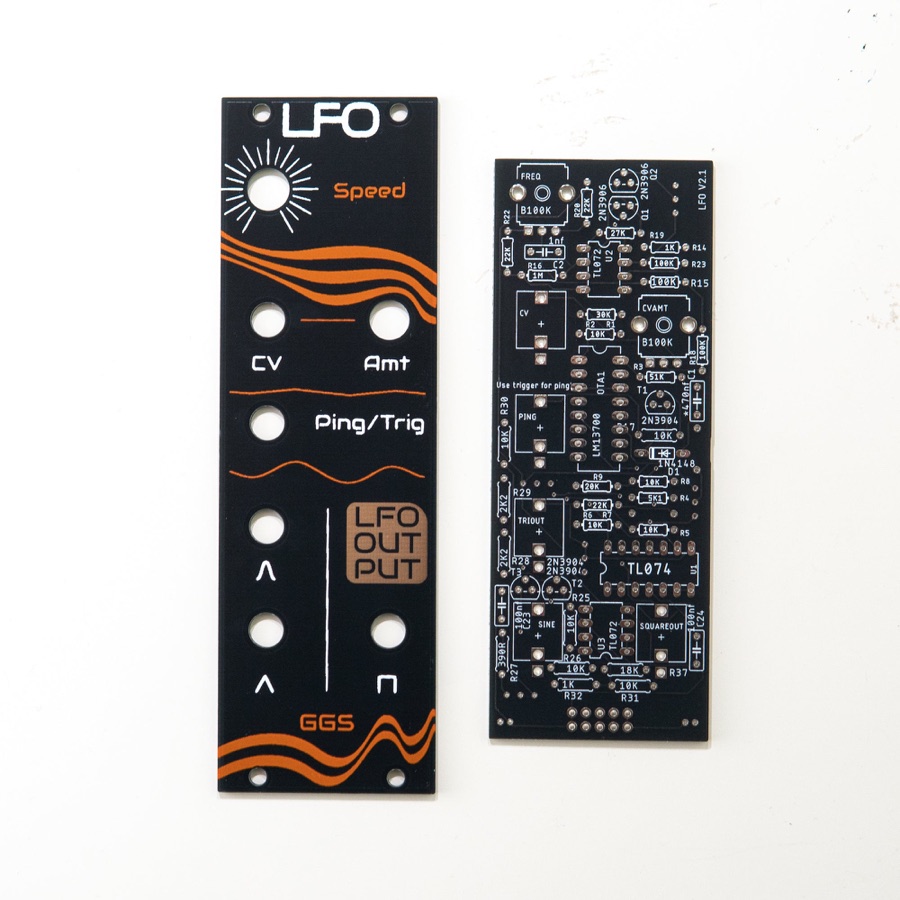

OTA LFO

Maker	Guru Gara Synth
Type	OTA LFO with square, triangle and sine, plus a ping input
Mounting	Through-hole
Width	8 HP
License	Proprietary (No licence published)
Difficulty	🌡️ Medium through-hole

Through hole; the build document part list has no SMD packages. Rate takes CV with a depth control, and the ping input resets the cycle on a falling edge. This replaced the discontinued 8038 LFO.
