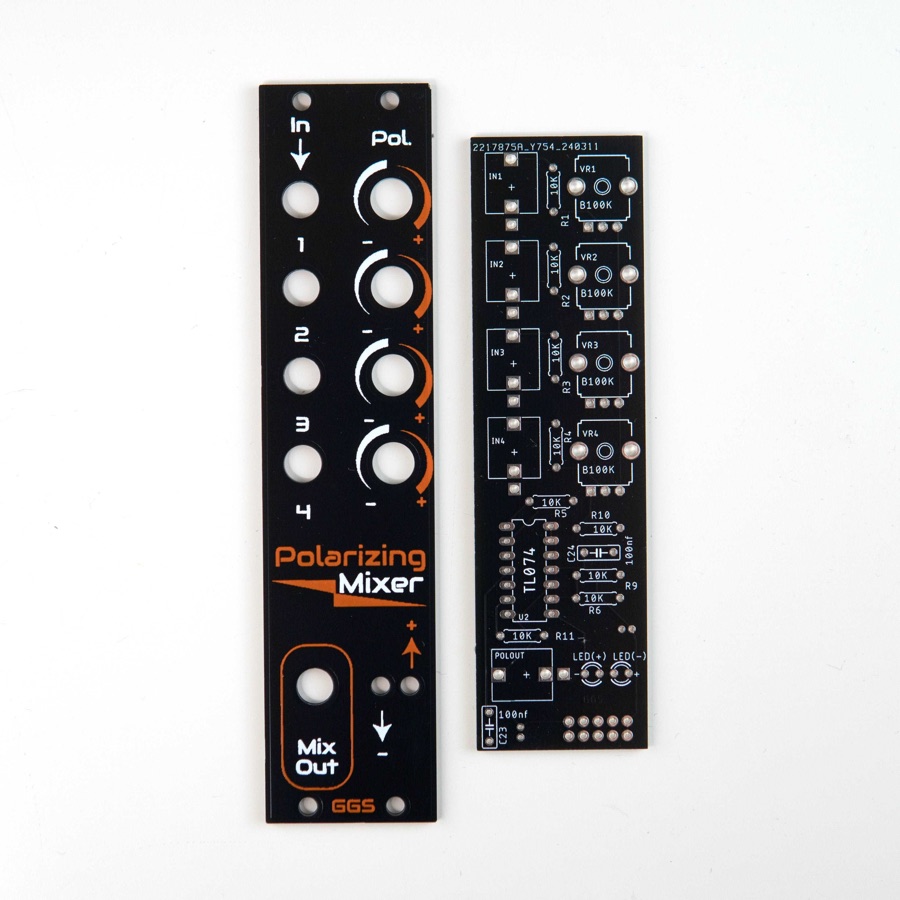

Polarizing Mixer

Maker	Guru Gara Synth
Type	Four input mixer with per channel polarity
Mounting	Through-hole
Width	6 HP
License	Proprietary (No licence published)
Difficulty	🧊 Low-count through-hole

Each channel can add or subtract, with LEDs showing output polarity. Good for offsetting and shaping modulation.

Documentation

• Assembly instructions
• Bill of materials (BOM)
• Schematic

Links

• Maker page
• Buy: Guru Gara Synth (PCB and panel kit)
