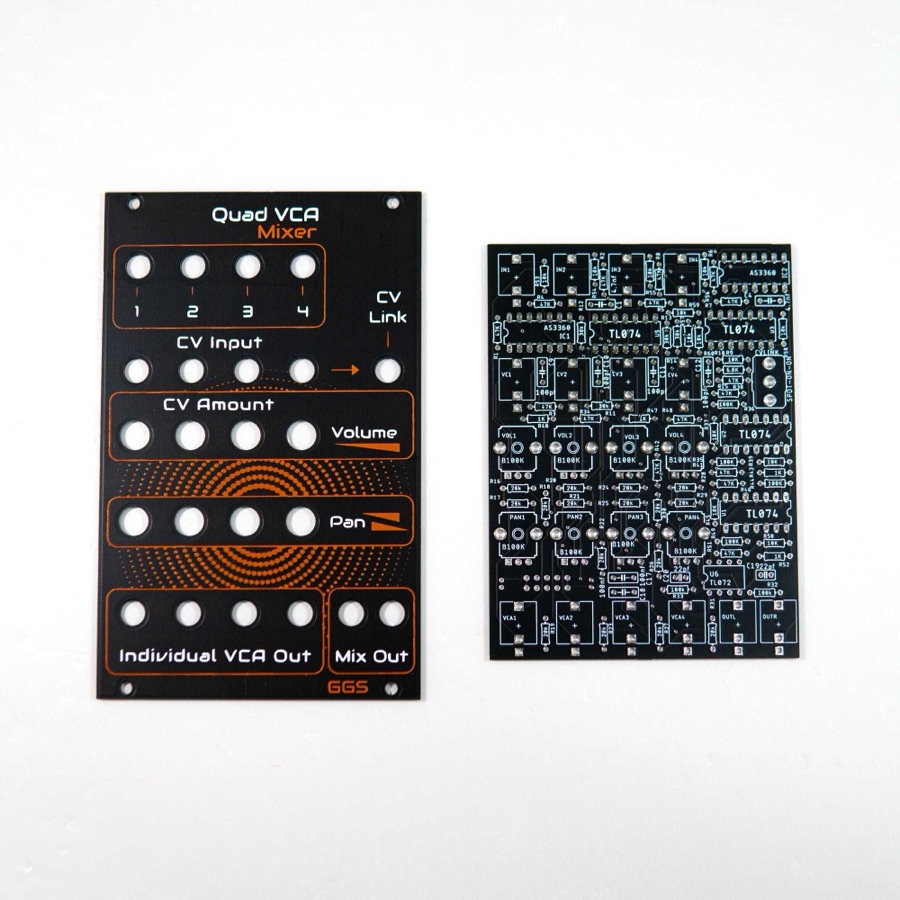

Quad VCA Mixer

Maker	Guru Gara Synth
Type	Four VCAs with panning and stereo mixing
Mounting	Through-hole
Width	16 HP
License	Proprietary (No licence published)
Difficulty	🌶️ Large through-hole

The largest board in the range. Four VCAs with individual CV and pan, summing to a stereo pair.

Documentation

• Assembly instructions
• Bill of materials (BOM)
• Schematic

Links

• Maker page
• Buy: Guru Gara Synth (PCB and panel kit)
