RIM

Maker	Guru Gara Synth
Type	Dual attenuverter with a zero point centre detent layout
Mounting	Mixed
Width	4 HP
License	Proprietary (No licence published)
Difficulty	🧊 Low-count through-hole

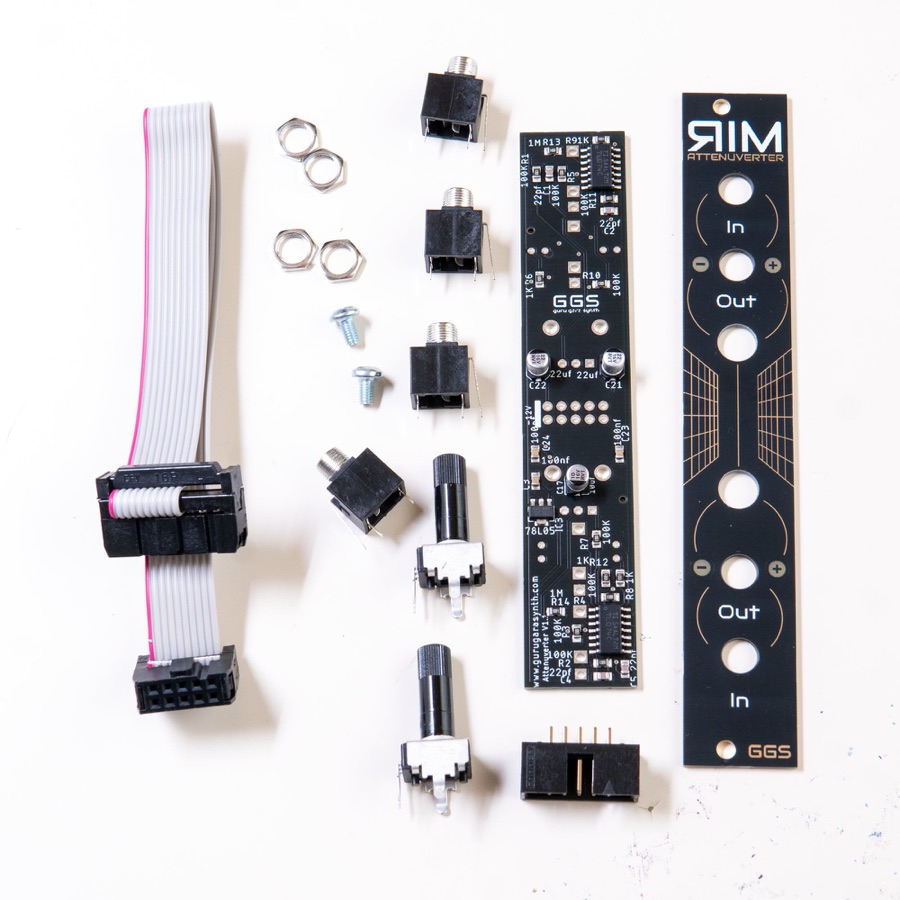

Full kit with the SMD parts factory assembled. Clockwise gives normal output, counter clockwise inverted, and it can generate a standalone minus 5V to plus 5V offset. Chip part sizes are not published.

Documentation

• Assembly instructions

Links

• Maker page
• Buy: Guru Gara Synth (full DIY kit)
