SIN

Maker	Guru Gara Synth
Type	Five channel summing mixer with a three step output gain switch
Mounting	Mixed
Width	4 HP
License	Proprietary (No licence published)
Difficulty	🧊 Low-count through-hole

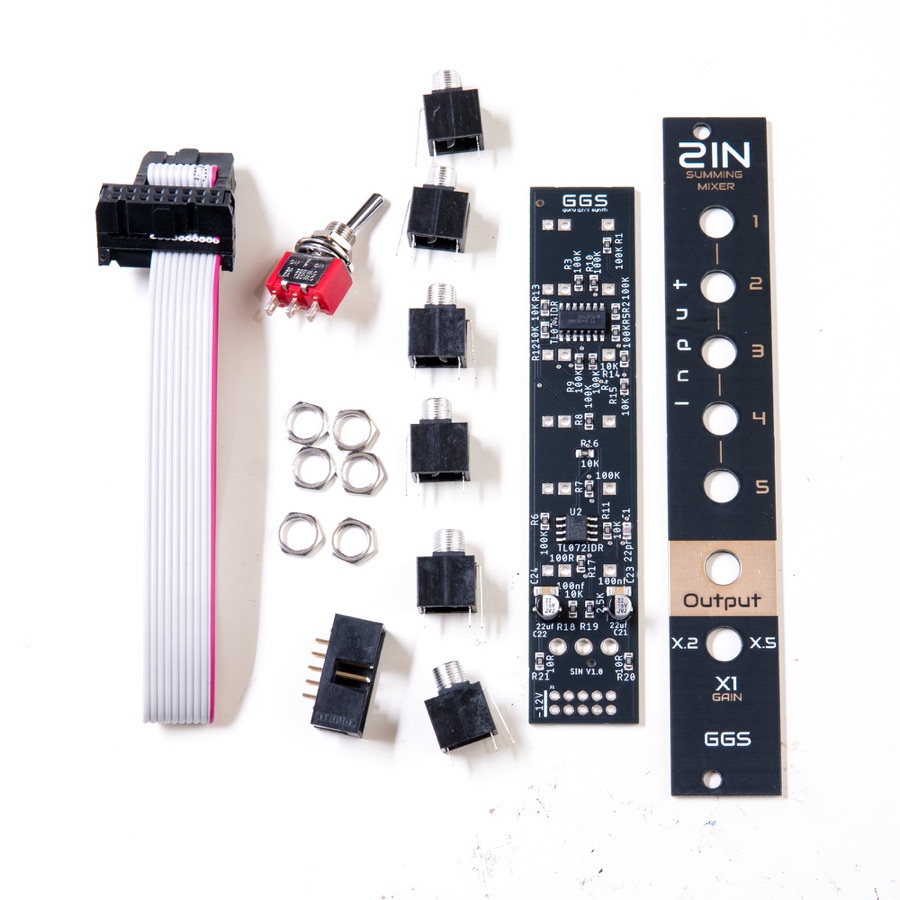

Full kit with the SMD parts factory assembled; only through hole parts are left. The gain switch drops the output to 0.5x or 0.2x for line level. Chip part sizes are not published.
