VCA IV

Maker	Guru Gara Synth
Type	Four OTA VCAs with offset per channel and stereo pairing
Mounting	Mixed
Width	10 HP
License	Proprietary (No licence published)
Difficulty	🧊 Low-count through-hole

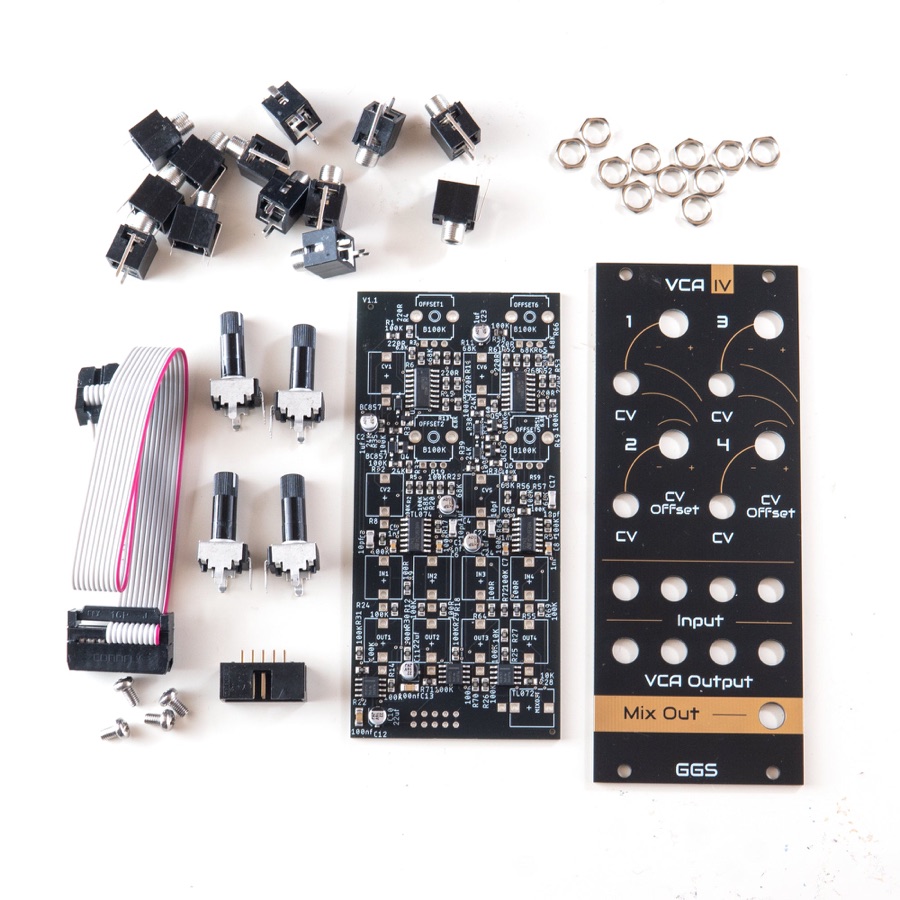

Full kit with the SMD side factory assembled; only jacks, pots and the power header are left to solder. No build document is published for this one.

Documentation

• Assembly instructions

Links

• Maker page
• Buy: Guru Gara Synth (full DIY kit)
