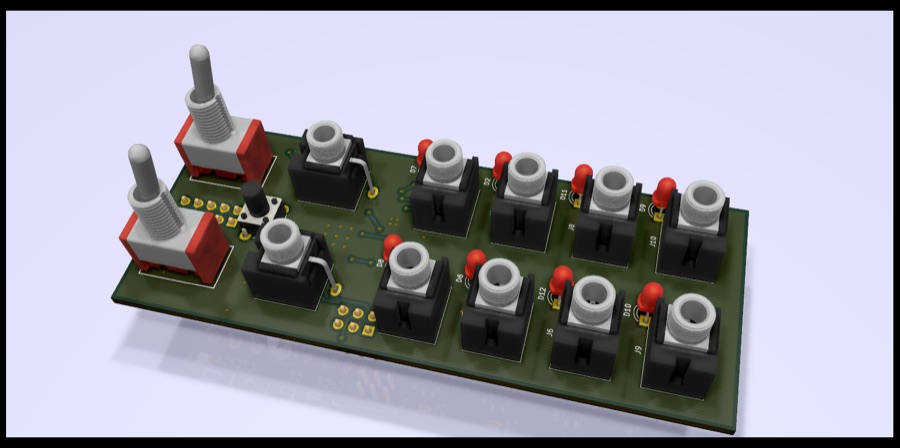

Divider

Maker	Marten Agren
Type	Clock divider with eight indicated outputs
Mounting	SMD
Width	—
License	Proprietary (MIT covers the code, no hardware grant)
Difficulty	🔥 SMD (0805)

0603 passives and SOT-23-5 logic with through hole LEDs, jacks and a mode switch.
