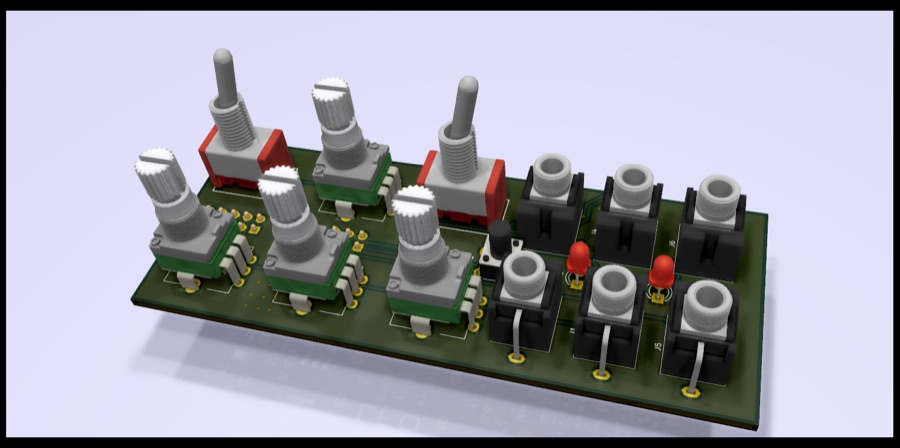

LFO

Maker	Marten Agren
Type	Low frequency oscillator with waveform select and CV inputs
Mounting	SMD
Width	6 HP
License	Proprietary (MIT covers the code, no hardware grant)
Difficulty	🌋 Fine-pitch SMD

Includes a DFN-8 part on a 0.5mm pitch, so it is the hardest of the maker's small utility boards to solder. Scope captures of the outputs are in the repo.
