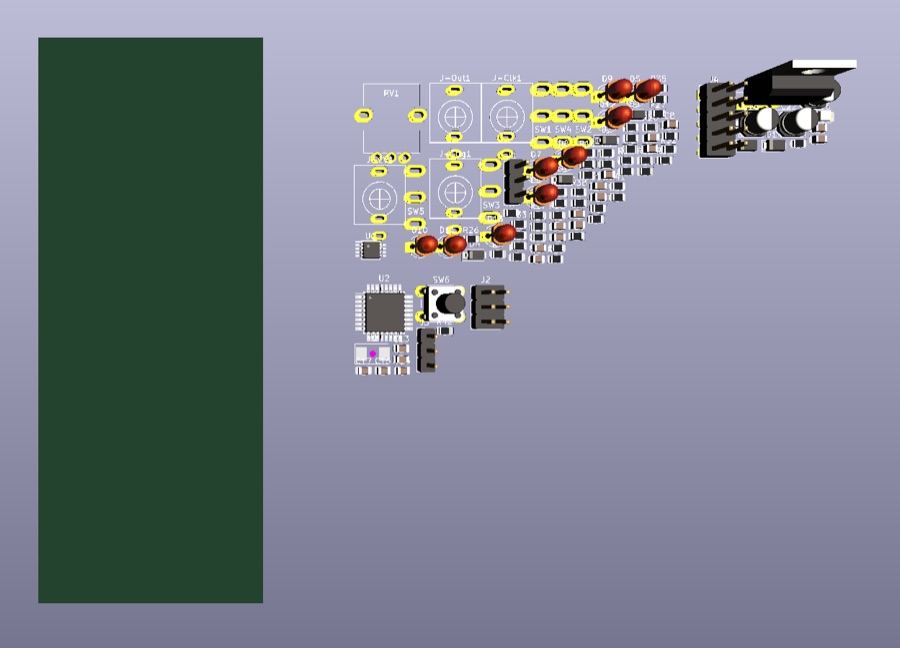

RndSeq

Maker	Marten Agren
Type	Random sequence generator with switch selected modes
Mounting	Mixed
Width	8 HP
License	Open source (MIT over a hardware-only repo)
Difficulty	🔥 SMD (0805)

ATmega328 based with 0805 passives and through hole LEDs, slide switches and jacks. A panel DXF is included.

Documentation

• Bill of materials (BOM)
• Schematic
• Fabrication files (PCBA-ready)

Links

• Source / files on GitHub
• Maker page
