| Maker | Marten Agren |
|---|---|
| Type | Microcontroller step sequencer with CV and gate outputs |
| Mounting | SMD |
| Width | 20 HP |
| License | Proprietary (MIT covers the code, no hardware grant) |
| Difficulty | 🌋 Fine-pitch SMD |

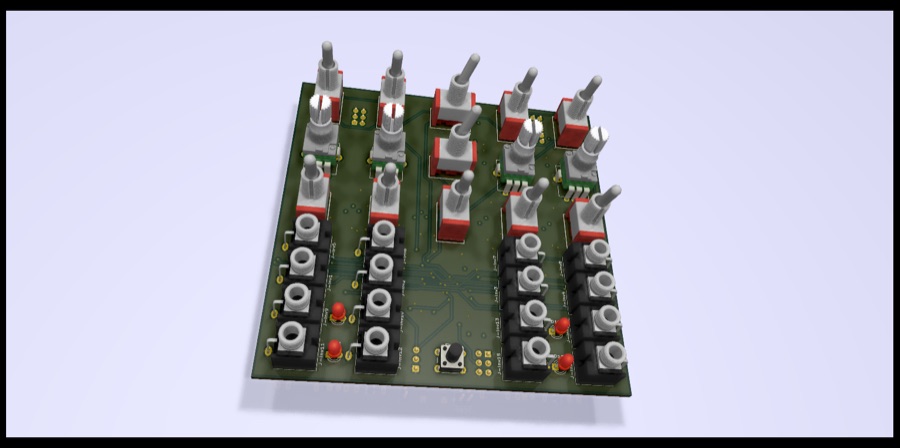

The largest board in the maker's system: four layers, an ATmega328, sixteen jacks, eleven slide switches and over 150 0603 parts. The BOM is supplied only as a PNG image.
Documentation
Links
This is a third-party open-source design, listed here as a build reference. Specs are researched from public sources; check the source repo and store for the current BOM, panel, and revision before ordering parts. Corrections welcome.
