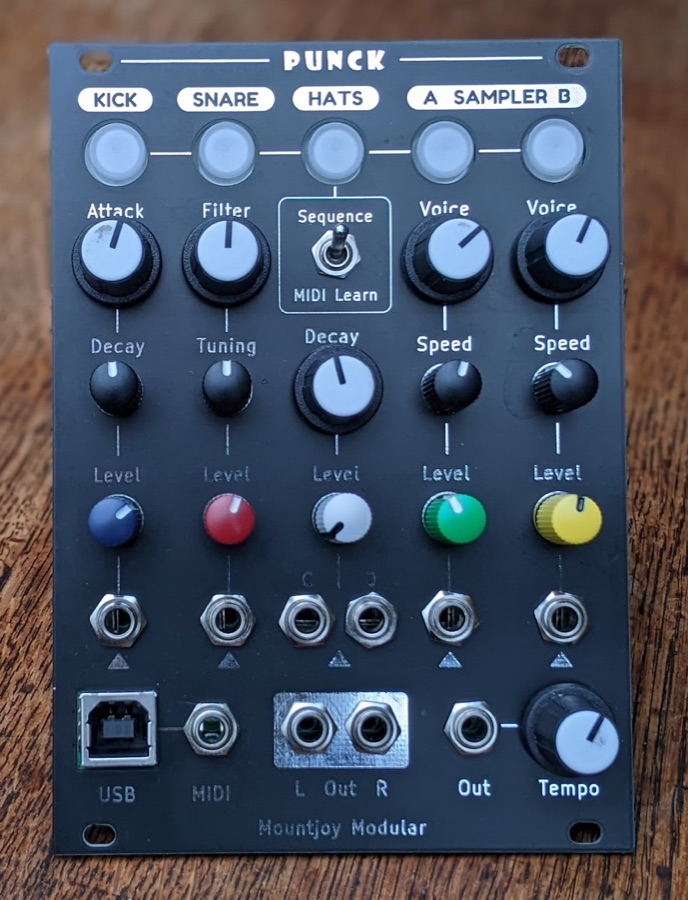

Punck

Maker	Mountjoy Modular
Type	Drum machine with kick, snare, hi hat, toms, claps and two sample players
Mounting	SMD
Width	20 HP
License	Proprietary (No hardware licence published)
Difficulty	🌋 Fine-pitch SMD

Clone of Kick and hi hat voices modelled on the Roland TR-808. STM32H7 with 32MB of internal flash exposed as a USB drive for samples. Built in sequencer holds five patterns and a browser based editor handles sequence entry and voice parameters.

Documentation

• Bill of materials (BOM)
• Schematic
• Fabrication files (PCBA-ready)

Links

• Source / files on GitHub
• Maker page
