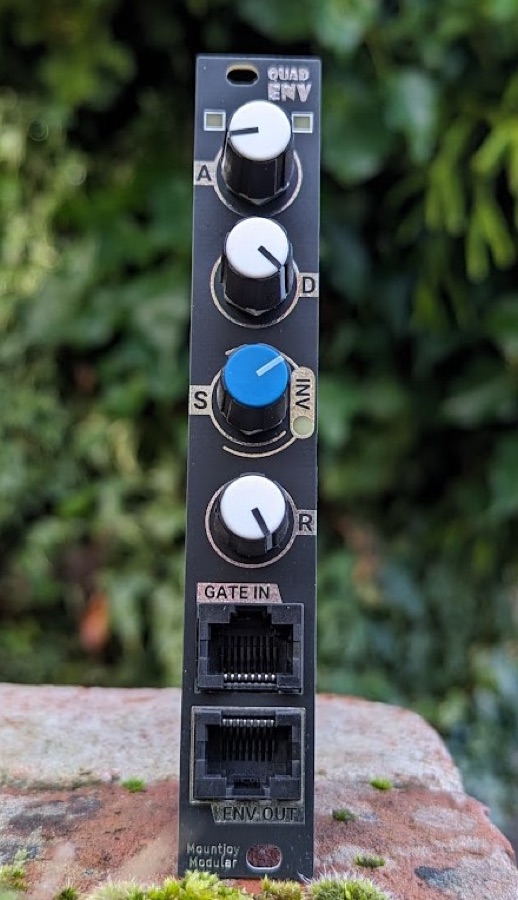

QuadEnv

Maker	Mountjoy Modular
Type	Four voice polyphonic ADSR that also runs as a four voice sine LFO
Mounting	SMD
Width	4 HP
License	Proprietary (No hardware licence published)
Difficulty	🌋 Fine-pitch SMD

Same hardware runs either mode, selected with a long press on the third pot. The L4O repo holds only the alternate LFO panel and firmware for this board.
