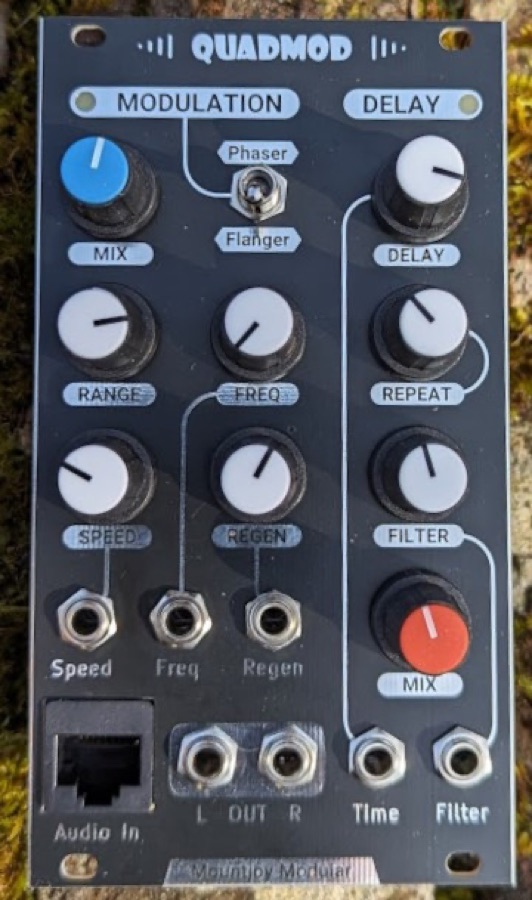

Quadmod

Maker	Mountjoy Modular
Type	Four channel phaser, flanger and delay effect for the polyphonic range
Mounting	SMD
Width	14 HP
License	Proprietary (No hardware licence published)
Difficulty	🌋 Fine-pitch SMD

STM32 with an AKM AK4619 four channel codec. Each channel's all pass filters or delays sit 45 degrees out of phase with the last, which spreads a four voice input across a stereo output.

Documentation

• Schematic
• Fabrication files (PCBA-ready)

Links

• Source / files on GitHub
• Maker page

More from Mountjoy Modular

Addatone Two channel additive oscillator on a Lattice FPGA with an STM32 front end Ampelope Four channel envelope generator and quad VCA with a clockable tremolo Ball Bluetooth LE gyroscope remote with a Eurorack base module that outputs three CVs Comb Comb filter oscillator built on an STM32H723 DisPhaze Two channel phase distortion oscillator modelled on the Casio CZ synths Hypersoniq Four voice polyphonic high pass filter Kishoof Dual channel wavetable oscillator with 64MB USB accessible storage and a round LCD MidiMonger USB and serial MIDI interface with 8 gate and 4 CV outputs

More effect modules

Warps Mutable Instruments Clouds Mutable Instruments PHRSR Super Synthesis CHORUS Super Synthesis ROOM Super Synthesis SCANNER Super Synthesis RAT TOIL Modular SoftSynthetics DSP Owen-Patrick

This is a third-party open-source design, listed here as a build reference. Specs are researched from public sources; check the source repo and store for the current BOM, panel, and revision before ordering parts. Corrections welcome.
